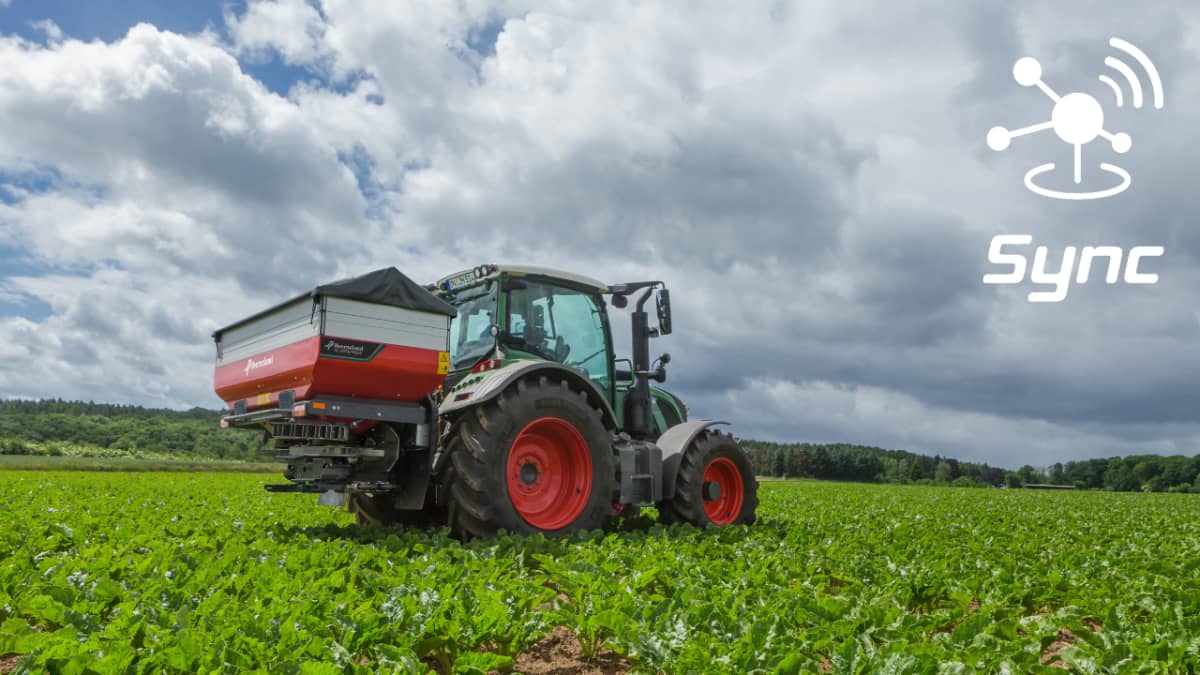

Kverneland Exacta CL GEOSPREAD

• The Kverneland weighing spreader range is 100% ISOBUS compatible as standard, which means easy plug and play with the IsoMatch Tellus GO+ or PRO or an other AEF certified terminal.
• The GEOSPREAD spreader range is equipped with an user interface (Generation 3 electronics) on the control terminal with an easy navigation structure, intuitive layout and guarantees optimal user friendliness. Features includes: pre-sets to save different fertiliser types, easy filling mode including limit warning, easier service and diagnostics and support of a digital spirit level to be able to level the spreader with the hydraulic top link from the tractor cab. Operators will be fully prepared for the future of spreading.

• No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.

• Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.

• Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.

• Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.

• Guaranteed accuracy on slopes: guaranteed accuracy on slopes. The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.

• Continuous dynamic "online - calibration" with high frequency communication signal.

• Kvernelands unique reference sensor technology: all negative influences are automatically corrected and eliminated, ensuring utmost spreading accuracy even on hill sides. The Kverneland reference sensor gives you absolute accuracy, because every kilo counts!

• Load cells in combination with the unique reference sensor:
  - Auto calibrating and continuous weighing system
  - Automatic correction on slopes
  - Automatic correction of shocks, even on rough terrain
  - Automatic speed related dosing system
  - No calibration test needed

• Highest accuracy in all conditions: even spreading quality guaranteed! Save costs and increase quality!

• The compact EasySet 'dashboard' gives you considerably simplified accurate setting and adjustment of application rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.

• The development department of Kvernelands spreader R&D team has its own spreader competence centre in order to allow continuous testing throughout the year. All test are carried out according to the strictest international standards and quality requirements.

• The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The Kverneland Exacta checklist helps you to ensure consistent accuracy in all field conditions
  1. Select fertiliser type
  2. Determine granule size and distribution
  3. Determine litre weight

• Direct access to the most recent test results at: www.kvernelandspreadingcharts.com or download the spreading charts Application via the App Store or get it on Google Play

• Kverneland offers the ExactLine system or manual/hydraulic border spreading plate for border spreading. The ExactLine can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the CL GEOSPREAD, HL, TL TLX GEOSPREAD (iDC) models the ExactLine can even be fitted on the left- and right-hand side of the spreader.
• With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.
• With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.
• The Border Spreading Indicator (BSI) on the standard weighing spreaders (Exacta CL EW, Exacta CL W PRO, Exacta TL) indicates which border spreading device is active. For the GEOSPREAD machines this is integrated in the electronics and the active device will be displayed on the control terminal in the cab.

For easy and cost effective spreading

MULTIRATE (Variable Rate Application) applies multiple rates within a working width.

In order to spread the right amount of fertiliser at a specific place in a field there is a need to have a different rate within the working width. Depending on the field variation and the size of the grid of the variable application map, input of 2, 4, 6 or 8 rate sections can be used. This means a more accurate application of nutrients to have a better nutrient efficiency, better yield and reduce costs.

With a Kverneland GEOSPREAD spreader you invest in 100% ISOBUS compatibility for easy plug and play with the IsoMatch Tellus PRO or any other AEF certified terminal. In just some steps with this combination you are ready to use MULTIRATE. You have to convert a satellite or soil map into an ISO-XML file. Download the Variable Rate Map into the terminal and you are ready to spread with MULTIRATE with 2 up to 8 rates.

With the AutosetApp you have always the most up to date settings for your weighing spreader available. The AutosetApp is an App (software application) available on the IsoMatch Tellus PRO or IsoMatch Tellus GO+ terminal. The AutosetApp is standard integrated into the IsoMatch GEOCONTROL software. This App connects the terminal directly with the GEOSPREAD weighing spreader and will automatically adjust the spreader according to the settings entered into the App. The AutosetApp will also work in combination with the CL-EW, W PRO and TL, with the exception being for those spreaders the discharge point (letter setting) still needs to be adjusted manually on the spreader itself.

The Kverneland fertiliser spreader database with the most up to date spreading charts is always available online. The AutosetApp can connect to the fertiliser spreading database in two different ways. You can connect it to the online database via the IsoMatch Wireless WIFI USB adapter or download the most actual database from the website www.kvernelandspreadingcharts.com on an USB stick and upload the database directly into the IsoMatch Tellus PRO or IsoMatch Tellus GO+ terminal.

• Easy to assemble aluminium hopper extensions are available to increase hopper capacity.
• An easy to fold in and out hopper cover is as option availble. Simple to fit!
• Left/right shut off valve for spreading at half working widths is optional available.
• To ensure a consistent flow when spreading low quantities, the CentreFlow system is equipped with a fine application kit. Ideal for spreading low quantities, seeds and slug pellets.
• Delta shaped heavy duty grids are standard equipment of the Exacta CL spreader.
• A hopper emptying kit is available for easy emptying of the last fertiliser granules out of the hopper.
• A tramline cylinder, manual or hydraulic border spreading plate or ExactLine border spreading device can be ordered for easy border spreading.
• Long life LED lights are optional available.

Increase capacity
The combination of a front and rear spreader will not only increase the total hopper capacity up to 6,000 or 7,000l, but also, it makes it possible to spread two different applications in one pass. This saves time and labour due to less passes, and also reduces soil damage.

There is a perfect weight balance with a (smaller) spreader on the front and rear, which means less ground pressure or soil compaction which can be especially helpful in wet conditions. In case there is no PTO shaft available at the front of the tractor, the central hydraulic driveline on the GEOSPREAD spreaders can be used.

With a front lighting set available as an option, the road lighting turns on the correct side if the spreader is located in the front of the tractor.

Accurate spreading pattern
Spreading two different fertilisers at the same time in one pass will increase nutrition accuracy. Two different fertiliser types, with different physical properties, can be applied with a correct setting to have a perfect spreading pattern. The result is an increased yield and cost savings on fertiliser.

Different combinations
All Kverneland spreader models, even with a different hopper capacity, can be combined in the front and the rear. However for the models where there is no ExactLine border device available for the left hand side spreading, there is a limitation in border spreading on the headland. In the Task Control (TC) on the ISOBUS terminal there is the possibility to select the front spreader and to enter the correct settings for the front spreader.

Increase efficiency
With the front and rear spreader combination and two ISOBUS terminals connected, much more is possible to save costs and increase efficiency! To minimise overlap, section control will automatically switch on and off sections on both spreaders. With the variable rate application on all the Kverneland GEOSPREAD spreaders it is possible to automatically adjust the application rate separately from the front and rear spreader. For even more precision, MULTIRATE applies multiple rates within a working width, independently from the front and rear spreader.
