S series
Kverneland power harrows with strength and reliability – power harrows you can rely on!
The Kverneland S series is a heavy-duty power harrow for tractors up to 250hp.
Highlights
Strong resistance to abrasion and torsion Thorough crumbling over entire working width Maximum versatility with all types of seed drills Reduced peak load and fuel consumption Wide choice of rear rollersDescription
The Kverneland S series is a heavy-duty power harrow for different operations and soil types. Robustly designed for use on tractors up to 250hp, with the Kverneland heavy-duty trough design and Quick-Fit tines the S series is the right solution for large farms and contractors.

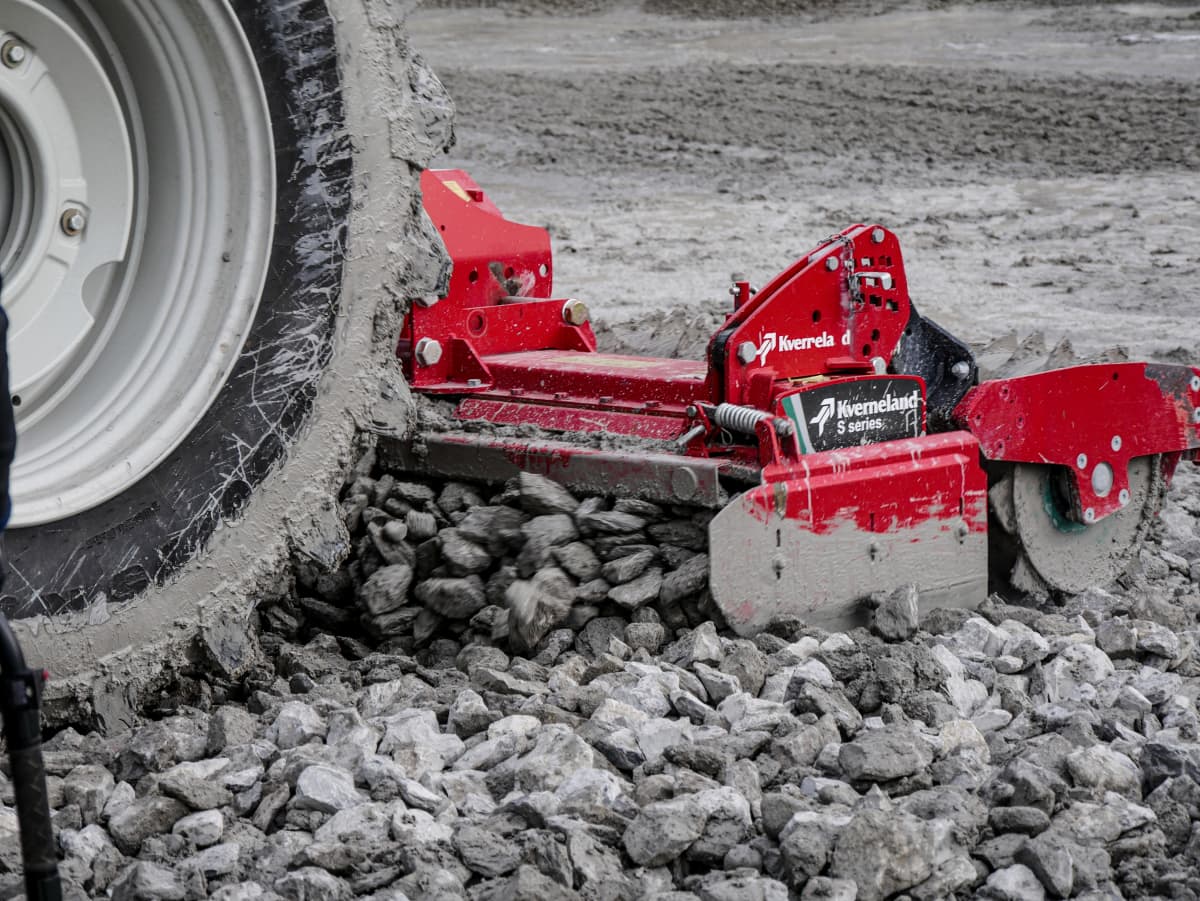

The S series is equipped with Quick-Fit tines as standard. Active tines with more aggressive action are available for optimum performance in difficult soil conditions. The trough design provides a large clearance between the tine holders and the trough bottom. This allows large amounts of residue and stones to pass freely without blocking. Solo use or in combination with the heaviest Kverneland cultivator mounted seed drills are possible.
Highlights

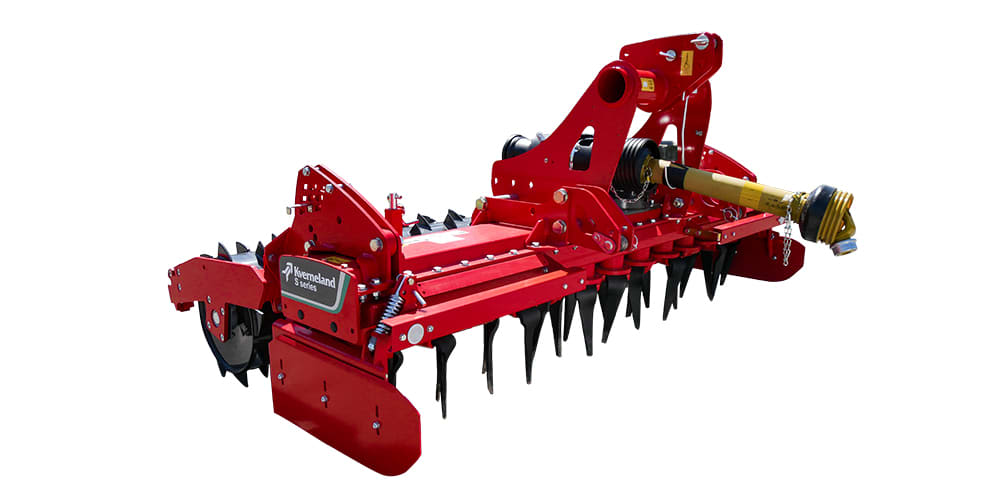

- Strong resistance to abrasion and torsion of the self-supporting trough
- Robust headstock
- Thorough crumbling over entire working width by four rotors (8 tines) per metre
- Max. versatility – easy and simple combination with all types of seed drills
- Reduced peak load and fuel consumption
- Wide choice of rear rollers
Technical specifications
Technical specifications
Download brochure| Model | S series | S series | S series | S series | |
|---|---|---|---|---|---|
| Maschine type | rigid | rigid | rigid | rigid | |
| Working width (m) | 3.0 | 3.5 | 4.0 | 4.5 | |
| Transport width (m) | 3.0 | 3.5 | 4.0 | 4.5 | |
| Trough dimension (mm) | 200 x 400 | 200 x 400 | 200 x 400 | 200 x 400 | |
| PTO input speed (rpm) | 1,000 | 1,000 | 1,000 | 1,000 | |
| Overload protection on PTO shaft (Nm) | 2,500 | 2,500 | 2,500 | 2,500 | |
| Number of rotors | 12 | 14 | 16 | 18 | |
| Standard rotor speed 1000rpm (rpm) | 298 | 298 | 298 | 298 | |
| Optional rotor speed 1000rpm (rpm) | 365 and 435 | 365 and 435 | 365 and 435 | 365 and 435 | |
| Tapered bearing distance (mm) | 110.5 | 110.5 | 110.5 | 110.5 | |
| Rotor clearance (mm) | 100 | 100 | 100 | 100 | |
| Number of tines | 24 | 28 | 32 | 36 | |
| Tine dimension (mm) | 18 x 330 | 18 x 330 | 18 x 330 | 18 x 330 | |
| Quick-Fit tines | Standard | Standard | Standard | Standard | |
| Active tines | Option | Option | Option | Option | |
| 3-point Linkage: Top | CAT 2/CAT 3 | CAT 2/CAT 3 | CAT 2/CAT 3 | CAT 2/CAT 3 | |
| 3-point Linkage: Low | CAT 2/CAT 3N/CAT 3 | CAT 2/CAT 3N/CAT 3 | CAT 2/CAT 3N/CAT 3 | CAT 2/CAT 3N/CAT 3 | |
| Depth adjustment | manual | manual | manual | manual | |
| Rear levelling bar | Option | Option | Option | Option | |
| Track eradicator | Option | Option | Option | Option | |
| Roller offering | Cage roller (ø 550mm), Tooth Packer roller (ø 575mm), Actiline roller (ø 550mm), Cracker Packer roller (ø 550mm), Actipack roller (ø 560mm) | Cage roller (ø 550mm), Tooth Packer roller (ø 575mm), Actiline roller (ø 550mm), Cracker Packer roller (ø 550mm), Actipack roller (ø 560mm) | Cage roller (ø 550mm), Tooth Packer roller (ø 575mm), Actiline roller (ø 550mm), Cracker Packer roller (ø 550mm), Actipack roller (ø 560mm) | Cage roller (ø 550mm), Tooth Packer roller (ø 575mm), Actiline roller (ø 550mm), Cracker Packer roller (ø 550mm), Actipack roller (ø 560mm) | |
| Ready to carry or integrate seeding eq. | Option | Option | Option | Option | |
| Lighting set | Option | Option | Option | Option | |
| Total weight (kg)* | 1,900 | 2,080 | 2,290 | 2,560 | |
| Minimum power requirement (kW/HP) | 74/100 | 74/100 | 74/100 | 74/100 | |
| Maximum power requirement (kW/HP) | 184/250 | 184/250 | 184/250 | 184/250 |
* Approx. weight with levelling bar, tooth packer roller ⌀ 575mm and PTO shaft approx.
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
No. of rotors/tines |
Weight with packer roller (kg) |
Min./max. HP |
S series |
3.0 |
12/24 |
1,670 |
100/250 |
S series |
3.5 |
14/28 |
1,950 |
100/250 |
S series |
4.0 |
16/32 |
2,225 |
100/250 |
S series |
4.5 |
18/36 |
2,510 |
100/250 |
* Approx. weight with levelling bar, tooth packer roller ⌀ 575mm and PTO shaft approx.
