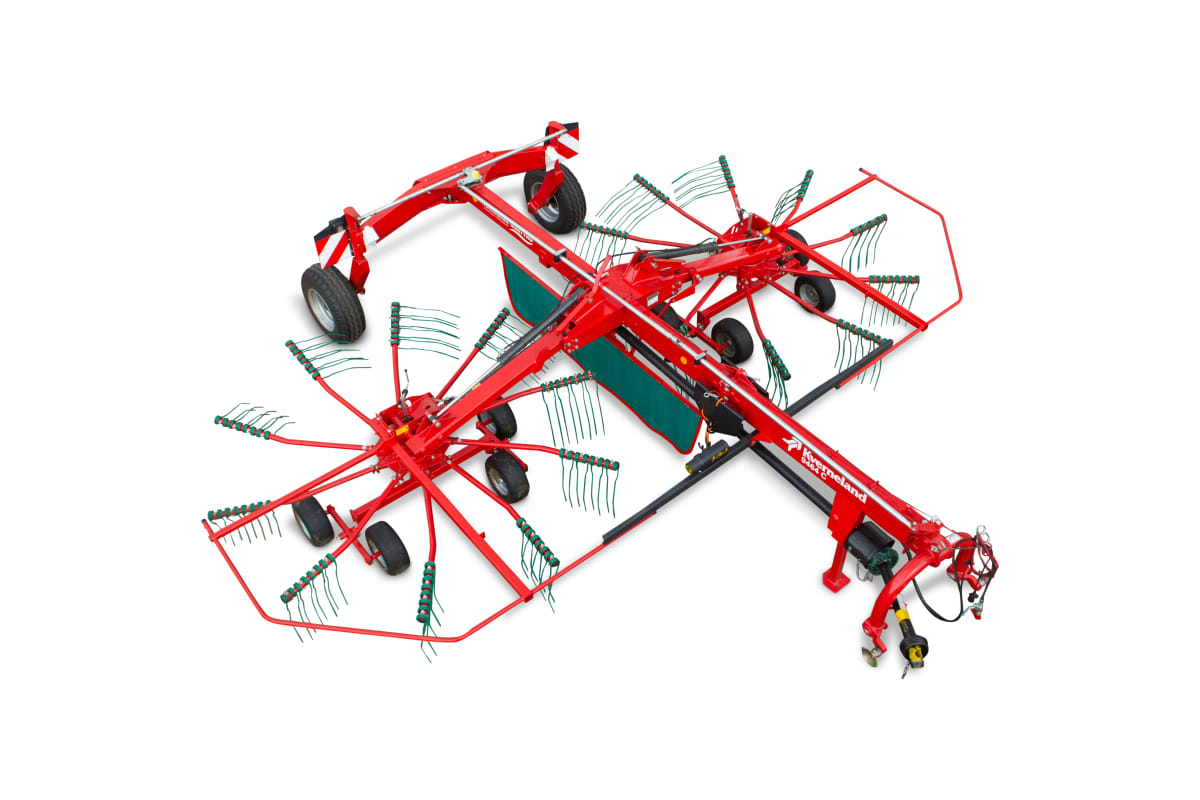

Kverneland 9464 C
CompactLine maintenance-friendly gearbox
Mounted double rotor rake with 6.40 m working width
Highlights
Compact two rotors rake with lower specs Steered transport carrier Maintenance-friendly oil-immersed gearbox Compact transport positionDescription
Kverneland 9464 C trailed rakes with fixed working width 6.4 m designed for low horsepower tractors. They are mounted on a strong and stable frame to ensure a long lifetime. With fixed working and swath width it is ideal for customers with low requirements.
Features
- The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimal raking at any working width and on any model.
- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.
- Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved with precision in every part of the raking.
- The ability to follow ground contours is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimal ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The Kverneland centre swath rakes offer hydraulic adjustable working width.
- This enables varying swath width, ensuring a perfect match to the pick up width of loader wagons, balers and foragers.
Working Width |
Swath Width |
|
9472 C |
6.20 - 7.20m |
1.20 - 2.20m |
9476 C |
7.00 - 7.80m |
1.20 - 2.20m |
9580 C |
7.00 - 8.00m |
1.20 - 2.20m |
9584 C |
7.60 - 8.40m |
1.30 - 2.10m |
9590 C Hydro |
8.00 - 9.00m |
1.20 - 2.20m |
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| 9464 C | ||
|---|---|---|
| Working Width | 6.4m | |
| Tine Arms | 10 | |
| Weight (kg) | 1510 | |
| Rotor diameter (m) | 3.00 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
No of Tines per Rotor |
Weight |
|
9464 C |
6.40m |
2x10 |
1510kg |
9472 C |
6.20 - 7.20m |
2x11 |
1640kg |
9472 C Hydro |
6.20 - 7.20m |
2x11 |
1680kg |
9476 C |
7.00 - 7.80m |
2x11 |
1640kg |
