Kverneland 8452
Compact – easy to maintain
Compact tedder with low maintenance
Highlights
- Low maintenance CompactLine gearbox
- Compact tedder - low weight and power requirement
- Rotor plate dimension of 500mm
- Double bearings from pinion to crown wheel
- Easy setting of spreading angle
Description
Kverneland 8452, with 5.2m working width, has low maintenance requirements and includes maintenance-friendly features such as 500mm rotor plates and an easy-to-maintain gearbox with only one grease nipple. Kverneland 8452 can be adjusted centrally to move the tedder to the desired position for border tedding. Hydraulic operation and reduction gearbox for night swaths is optionally available.
Highlights
- Low maintenance CompactLine gearbox with only one grease nipple.
- Compact tedder with low weight and power requirement.
- Rotor plate dimension of 500mm.
- Double bearings from pinion to crown wheel guarantee maximum longevity of the driveline.
- Easy setting of spreading angle through simple three-way adjustment of wheel height.
Features
- The box type frame of the Kverneland 8000 series is an extremely solid construction. It is composed of two U-sections fitted into each other and securely welded together. The frame is totally enclosed at the top for maximum strength.
- All tedders have greasable pivoting points with an extra large diameter, making it a very strong and reliable construction.
- Made from flat steel, the tine arms form a very compact unit with the rotor plate. This makes the tedders by far more resistant to any type of load.
- High-quality forage allows the optimum spreading angle to be achieved according to crop conditions, helping you to produce high quality forage.
- Setting the rotors to the right spreading angle will considerably improve the spreading action, and speed up the drying process.

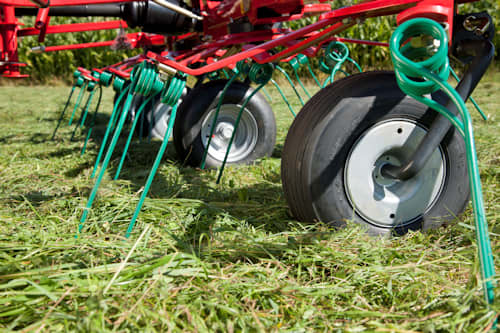

- The mower swaths are neatly lifted by the tines and evenly spread over the full width.
- Tines glide in a more uniform frequency over the stubble, so the risk of dirt being lifted by the tines is minimized.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model CompactLine | 8452 | |
|---|---|---|
| Working width (m/ft) | 5.20 / (17’1”) | |
| Number of rotors | 4 | |
| Number of tines/rotor | 6 | |
| Transport width (m/ft) | 2.90 / (9’6”) | |
| Transport length (m/ft) | 2.10 / (6’11”) | |
| Storage height (m/ft) | 2.65 / (8’8”) | |
| Capacity theor. (ha/h) | 4.2 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureModels |
Working Width |
Rotors/Tines |
Weight |
8446 |
4.60m |
4/5 |
495kg |
8452 |
5.20m |
4/6 |
520kg |
