Kverneland 8590 C
Reliable performance with smart transport solution
Mounted tedder with transport running gear
Highlights
Maintenance-free in season, except PTO and carrier Transport running gear for smaller tractors Flexible HexaLink finger clutch on outside rotors Optional electric comfort control Central hydraulic adjustment for border teddingDescription

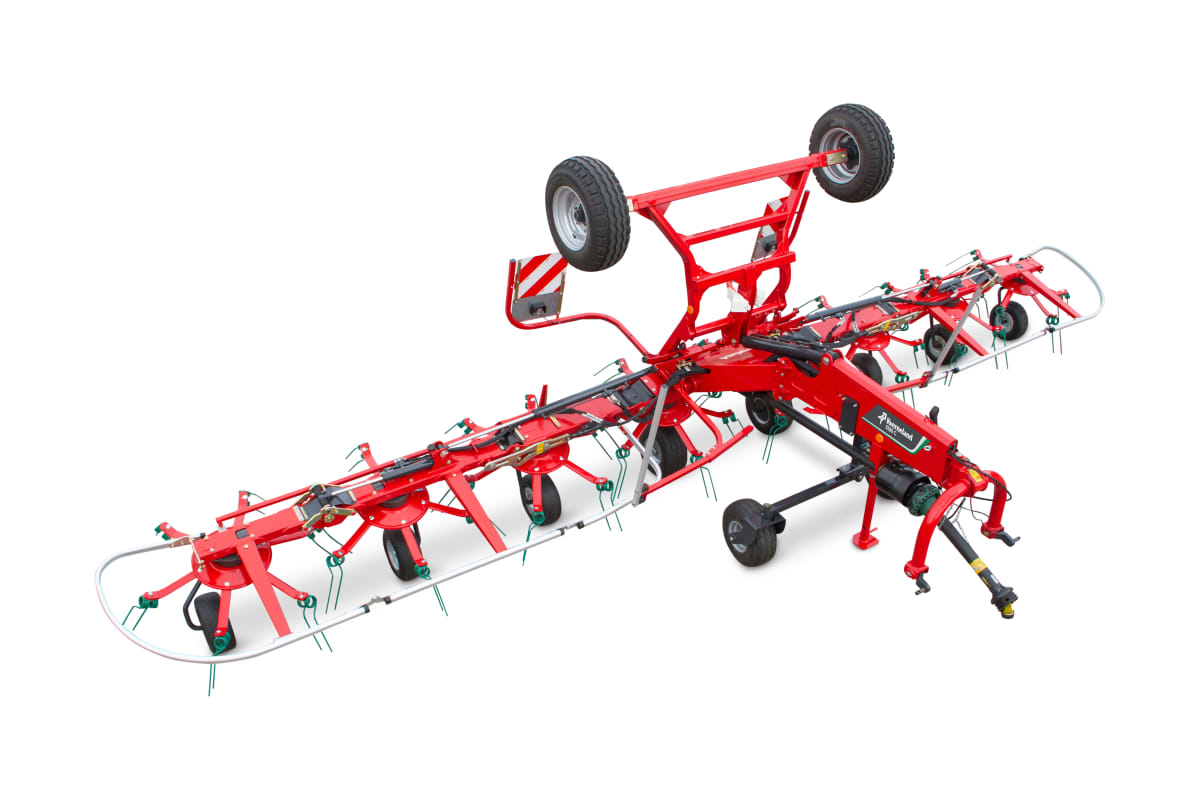

Kverneland 8590 C, with 9.0m working width, is a carrier frame tedder purpose-built for use with smaller tractors. The wide track width ensures stable running characteristics during road transport. Due to the carrier frame concept, the lifting capacity of the tractor is not a limiting factor and it can be operated with smaller tractors. It offers very compact storage and transport height due to the implementation of the HexaLink finger clutch system in the joints of the two outer rotors.
Highlights
- Fully maintenance-free in season, except PTO and carrier.
- Strong driveline, sturdy u-joints on the inside rotors and flexible HexaLink finger clutch on outside rotors
- Transport running gear for use with low lift tractors
- Central hydraulic adjustment for border tedding
- Strong and sturdy design with closed V-shaped central unit
- Optional electric comfort control to get rid of ropes
Features
Powered by a maintenance-free driveline and gearboxes, focus can be directed towards the essentials to maximise productivity. No time is wasted on time consuming greasing. Additionally the hinges are connected with strong maintenance-free roller bearings for extended longevity and stability of the connection points.
- The ProLine gearbox is a strong and reliable construction, and is not fitted to the mainframe.
- Shock-protected: The enclosed system is not affected by chassis or tine arm vibrations.
- Constant lubrication: Enclosed and oil-immersed, the gearbox components enjoy extended longevity over systems that require manual lubrication.
- Reduced maintenance: There is no need for daily lubrication.
- Environmental protection: No lubrication means no leakage - hence higher-quality forage.
- No corrosion: No ingress of dust and water, not even during pressure washing.
To increase productivity, all mounted tedders are Standard equipped with a mechanical border tedding device.
All carried tedders (8590 C, 85112 C, 85140 C) have standard hydraulic solution for border tedding.
A marker cleverly shows the position of the axle.
- It only takes a few seconds to place the tedder in the right position.
- For 85140 C border tedding is set by moving the outer arm at the correct angle.
- Transport position with weight on the transport carrier allows for using small tractors down to app. 70 hp
- Large wheels on the carrier 10.0/75-15.3 with an outstanding wide track of 2.45 m ensure excellent and stable track following and smooth running characteristics
Electro-hydraulic Control of main functions with simple Joystick (optional).
Technical specifications
Technical specifications
Download brochure| Model ProLine | 8590 C | |
|---|---|---|
| Working width (m/ft) | 9.00 / (29’6”) | |
| Number of rotors | 8 | |
| Number of tines/rotor | 6 | |
| Transport width (m/ft) | 2.94 / (9’8”) | |
| Transport length (m/ft) | 4.21 / (14') | |
| Storage height (m/ft) | 3.74 / (12’3”) | |
| Capacity theor. (ha/h) | 7.2 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Rotors/Tines |
Weight |
|
8590 C |
9.00m |
8/6 |
1700kg |

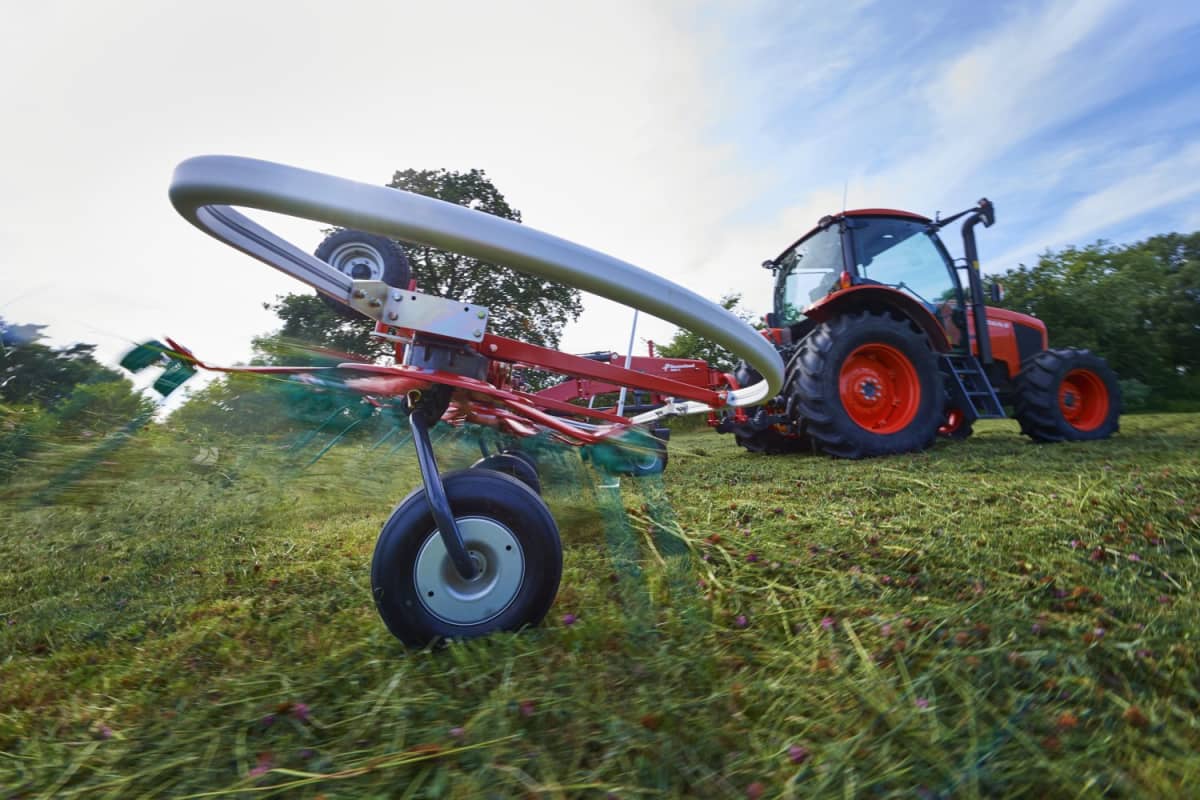

85112 C NEW |
11.20m |
10/6 |
2225kg |
