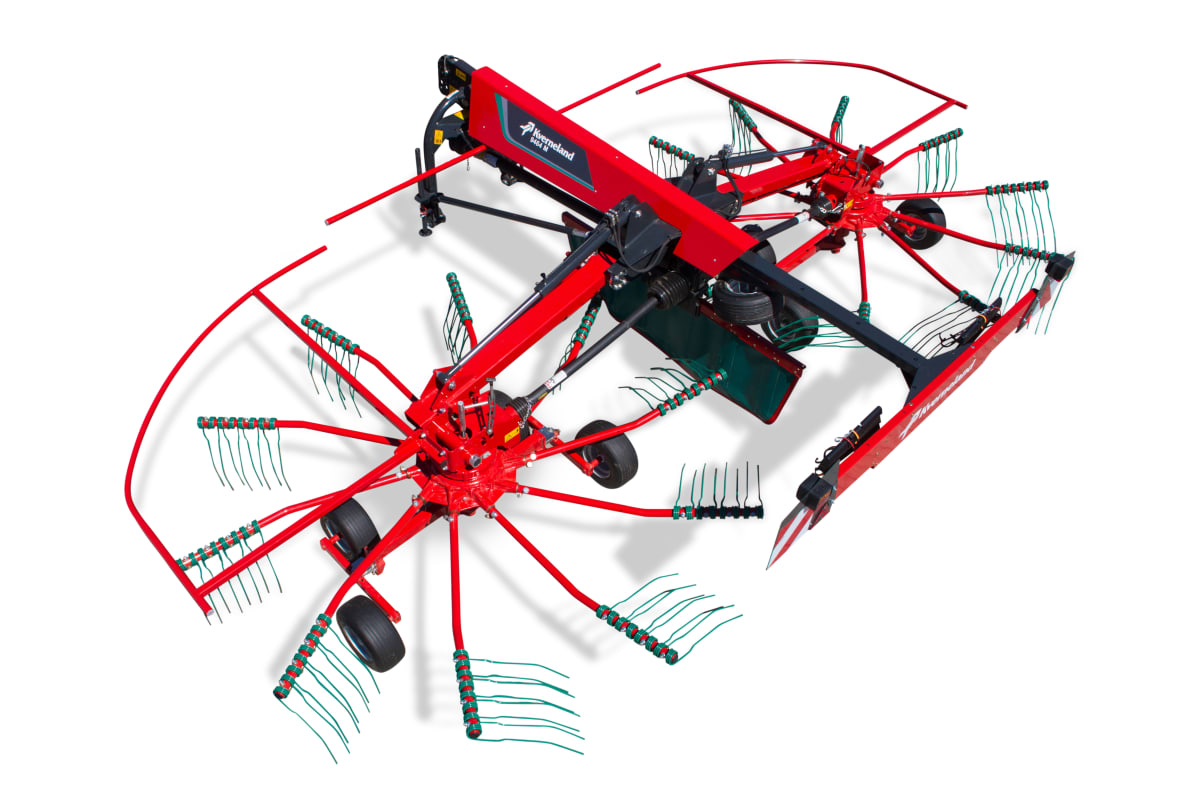

Kverneland 9464 M
Highly maneuverable for narrow road and tight Gateways
CompactLine mounted double rotor rake with 6.40 m working width
Highlights
Compact two rotor rakes with 3 point mounting Pivoting headstock for perfect following in curves Maintenance-friendly oil-immersed gearbox Compact transport positionDescription

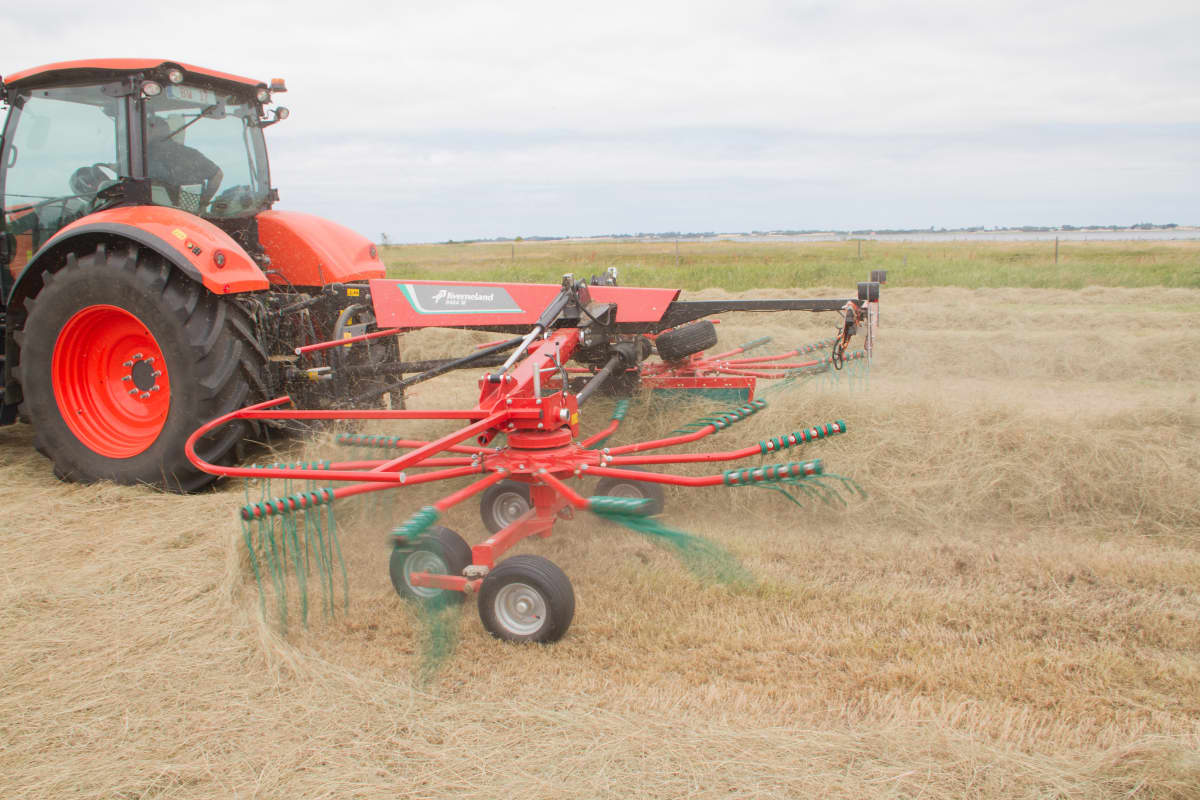

The 9464 M mounted double rotor rake with 6.40 m working width is ideal for two swaths from a 3.2m mower. Robust and durable centre swath rake design with a compact package of features, including a maintenance-friendly CompactLine gearbox with ten tine arms per rotor. Furthermore, it provides a fixed swath width of 1.20m, suitable for efficient pick-up.
Features
- The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimal raking at any working width and on any model.
- Easy headland lift with 3-point linkage
- Outstanding clearance in headland position
- Pivoting headstock to guide the machine freely along the field contour
- Together with stabilizers, a perfect performance also on hillside is guaranteed.
- Optional tandem wheels can even create a softer Performing.
- High flexibility on the road, and in the field, as no carrier is disturbing
- Compact Dimension and comfortable storing with supporting leg's on the headstock and on both lifting arms.
- Compact Transport position on 3-point mounting
- Narrow transport position without leaving the cabin
- High flexibility on the road, and in the field, as no carrier is disturbing
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| 9464 M | ||
|---|---|---|
| Working Width | 6.4m | |
| Tine Arms | 10 | |
| Weight (kg) | 1200 | |
| Rotor diameter (m) | 3.05 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
No of Tines per Rotor |
Weight |
|
9464M |
6.40 m |
2x10 |
1200kg |
