Kverneland RN
Cost efficient, easy to adjust and to maintain
Cost efficient, easy to adjust and to maintain In-furrow & On-land 5 - 9 Furrows
Highlights
In-furrow and/or On-land operations Safe and smooth reversal of the plough Unique headstock for minimum turning circle Gentle movement between the turnover arm and the frame Soil re-consolidation: possibility to fit packer armDescription

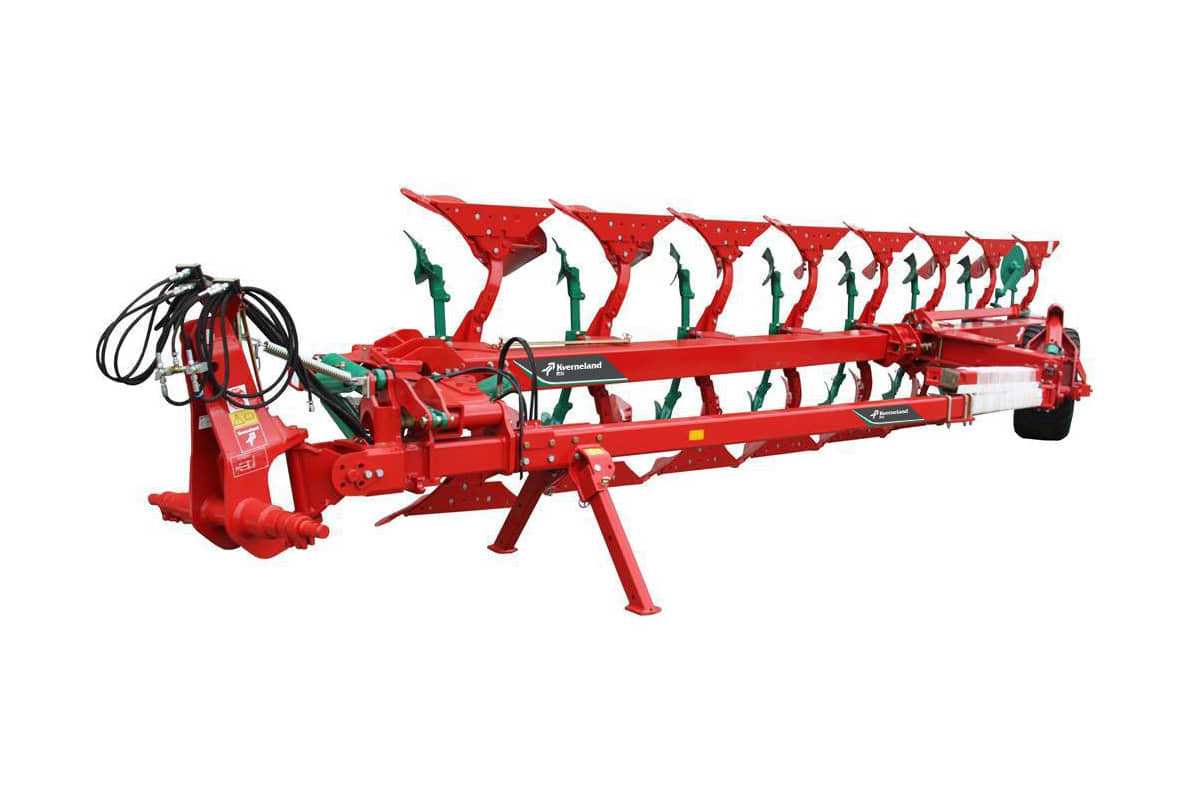

Kverneland RN is designed for In-furrow & On-land operations. The On-land version can also plough In-furrow. The In-furrow model can be retrofitted with an On-land kit. The Kverneland RN model is a robust semi-mounted reversible plough with a 200x200 mm induction heat treated frame. Legs are shearbolt protected. It is easy to handle, economic to run while delivering a high quality output. It features an automatic steered centre-mounted wheel for an easy ploughing out of fences, hedges, ditches. The stepwise furrow width adjustment is easily carried out by repositioning only 1 bolt.
Highlights
- Safe and smooth reversal of the plough ensured by a turnover mechanism being linked to the wheel assembly
- Unique headstock for minimum turning circle. Cat. III or IV
- Gentle movement between the turnover arm and the frame via plastic wear plates. No lubrification needed and less noise.
- Easy adjustment of the wheel angle when changing the ploughing width, via a turnbuckle
- Optional hydraulic front furrow width adjustment for In-Furrow models
- Large clearance up to 115cm for long residues
- Extendable by 1 furrow to the maximum number of furrows indicated in the chart below
- Soil re-consolidation: possibility to fit a Kverneland packer arm
Features
Importance of heat treatment
- The frame is an essential part of the plough construction. For Kverneland quality standards, a non heat treated part is a weak part!
- Kverneland frames are heat treated by induction twice. The temperature transfer to the steel is closely monitored. The frame gains 3 times as much strength. This unique Kverneland induction processes provides robustness and flexibility while ensuring an outstanding durability.
Stronger but not heavier
- For the equivalent Kverneland robustness, competitors would use more steel in thickness or in dimensions, therefore producing a heavier frame.
- Heavier frame impacts negatively pulling forces, wearing of parts, lifting capacities, tractor life time, and fuel consumption.
Long lasting
- Weldings are also a critical weakness for a plough frame. Kverneland frames are supplied as one sole part, no welding!
Frame availability
- 120x200 mm main frame
- 200x200 mm from 8 furrows
Available as:
- 5, 6, 7, 8 and 9 furrows for 100 cm interbody clearance
- 5, 6, 7 furrows for 115 cm interbody clearance
Excellent Ploughing Quality
They are renowned all over the world for their:
- excellent ploughing quality
- outstanding wear resistance
- low draft requirements
Bodies of a unique steel.
Kverneland Technology: 12 hours carburising heat treatment process for:
- optimum wear resistance (sharp as a diamond)
- the necessary flexibility to absorb impacts
Body No. 8 – “Universal body”
for light to heavy soils
good trash burial
easy pulling
Depth: 15 to 30 cm (6 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 9 – “Deep Universal body”
for heavier soils and deeper ploughing
well turned and packed furrows
easy pulling
Depth: 15 to 35 cm (6 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 28 – “Wide tyre body”
suits all soils; even heavier soils than body 8
very wide empty furrow for tractor wheels up to 710 mm
good turning and well packed
easy pulling
suitable for Depth: 12 to 30 cm ( 5 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 30 – “Finger body”
for sticky-stony soil and abrasive soils
good work in heavier soils
best crumbling effect
wide furrow bottom,
Depth: 20 to 35 cm (8 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 34 – Plastic mouldboard
Long and slim shape (similar to body 28)
For soils with high humus content without stones
Advised for tactors with large tyres
Easy pulling
Working depth: 12-35cm
Working width: 30-55cm
Landside / mouldboard: 40 degree
Body No. 38
universal body – easy to pull
for any soil conditions
recommended for tractors with large tyres
from deep to shallow ploughing
perfect turning of the furrow slice
working depth: 12-35 cm
working width: 30-55 cm
landside / mouldboard: 40°
Unbeatable in stony conditions !
Kvernelands fully automatic non-stop Auto-Reset System is unbeatable when it comes to trouble-free ploughing in stony conditions. The clever multi-leaf spring system allows the plough legs to release over stones and other solid objects in a smooth and efficient manner. This avoids sudden jolts and possible damage. Once the obstruction is passed, the plough body automatically returns to the correct ploughing depth.
Safety compliance
With today's demands for higher output, both tractor and plough are expected to perform quicker than ever. This makes more arduous demands on the equipment, particularly on the safety systems designed to protect tractors, ploughs and drivers against the dangers encountered whenever the plough meets hidden obstructions in the ground. The Kverneland Auto-Reset system guaranties this safety high standars requirements.
Adaptable to varying soil conditions
Depending of the type of soil all Kverneland ploughs can be equipped with different leaf springs packages. For soft soils, a normal spring with 5 leaves is the best choice to obtain the perfect ploughing in stony conditions. Today, most Kverneland ploughs are delivered with the Heavy Duty springs package (HD) with 7 leaves. This will perform well in most conditions. If the soil is very hard and stony - a double leaf spring package is recommended.
Extra leaves when needed
The standard Auto-Reset system includes 7 Kverneland heat treated springs (640Kp).
For heavier to extreme soil conditions, extra leaf springs are added for up to 1400kp.
The leaves are easily fixed with one central bolt only.
Individual body release !
The Kverneland mechanical Auto-Reset system enables very plough body to release independently. A quality ploughing is therefore guaranteed.
Minimum wear and high second hand value
Kverneland's Auto-Reset System is a quite simple construction that withstands the punishing forces year in, year out, with a minimum of maintenance. Save time and money !
Moreover, the Kverneland auto-reset system guarantees a longer life to the plough. When hitting an obstacle, the pressure on the point, frame, plough parts, decreases. The stress on Kverneland ploughs is therefore reduced. Consequently, second hand Kverneland ploughs sell at a higher value than competitors ploughs.
*by using an Hydraulic system, pressure would increase
Kverneland Heat Treatment Technology:
- more than 140 years of experience
- steels that withstand the toughest of conditions
- best robustness/weight ratio on the market
- for equivalent robustness, competitors would add more steel and therefore more weight, quicker wear, dissappointing ploughing results
Kverneland Steels:
- Benefits from less weight:
easier to pull/lower fuel consumption/lower lift requirement/reduced wear and stress for the tractor/more economical … - Benefits from more resistance:
minimum breakage/less maintenance/lower rotation for wearing parts/time saving/highest 2nd hand plough value/longer life for the plough/more economical…
Problems always happen when the plough is being used, when the work must be done!
A Kverneland plough is a peace mind!
More info: Kverneland Technology
Technical specifications
Technical specifications
Download brochure| Model | RN | RN | ||
|---|---|---|---|---|
| Interbody clearance cm | 100 | 115 | ||
| Leg protections | Shearbolt | Shearbolt | ||
| Working width cm | 35-40-45 | 40-45 | ||
| Underbeam clearance cm | 70/80 | 70/80 | ||
| No. of furrows | 5-9 | 5-7 | ||
| Weight (kg) | 4 | – | – | |
| Horse power requirement (hp) | 4 | – | – |
Technical specifications
Technical specifications
Download brochureModel |
Interbody Clearance cm |
Underbeam clearance cm |
Working width cm |
No of furrows |
PN |
100 |
70/75 |
35 - 40 - 45 |
5 - 9 |
PN |
115 |
70/75 |
40 - 45 |
5 - 7 |
RN |
100 |
70/80 |
35 - 40 - 45 |
5 - 9 |
RN |
115 |
70/80 |
40 - 45 |
5 - 7 |
