Kverneland Roc 1073
The machine can be used for side or centre delivery.
Universal Mergers with variable working width from 7 to 7.3m
Description

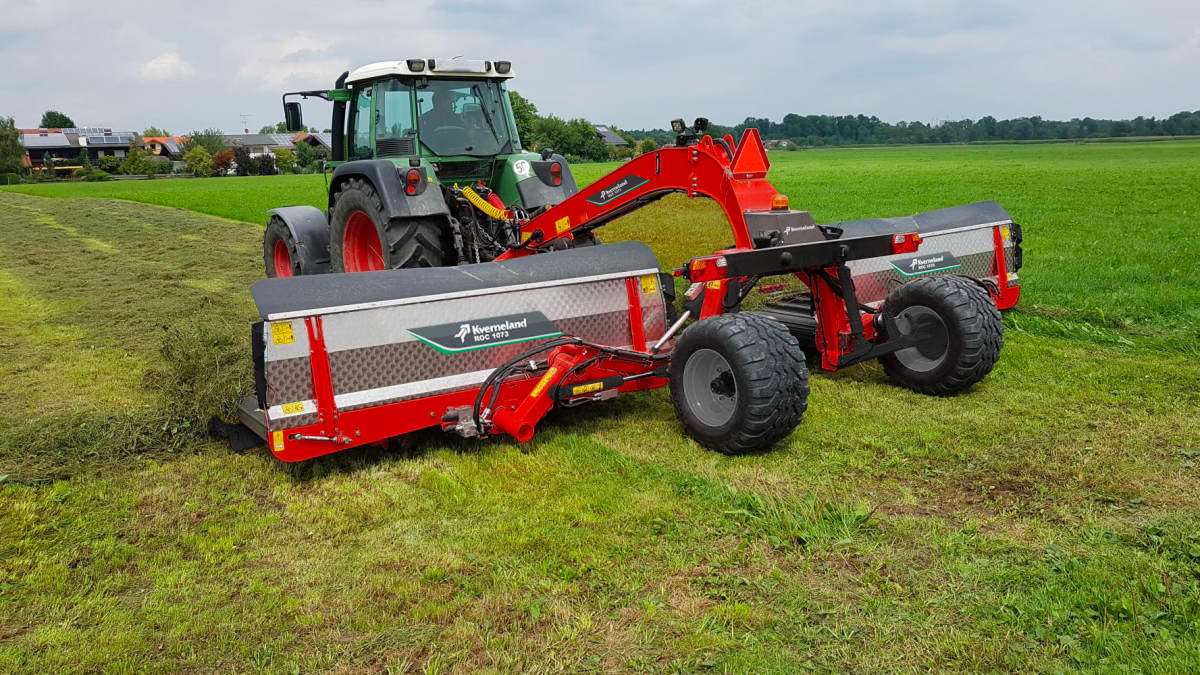

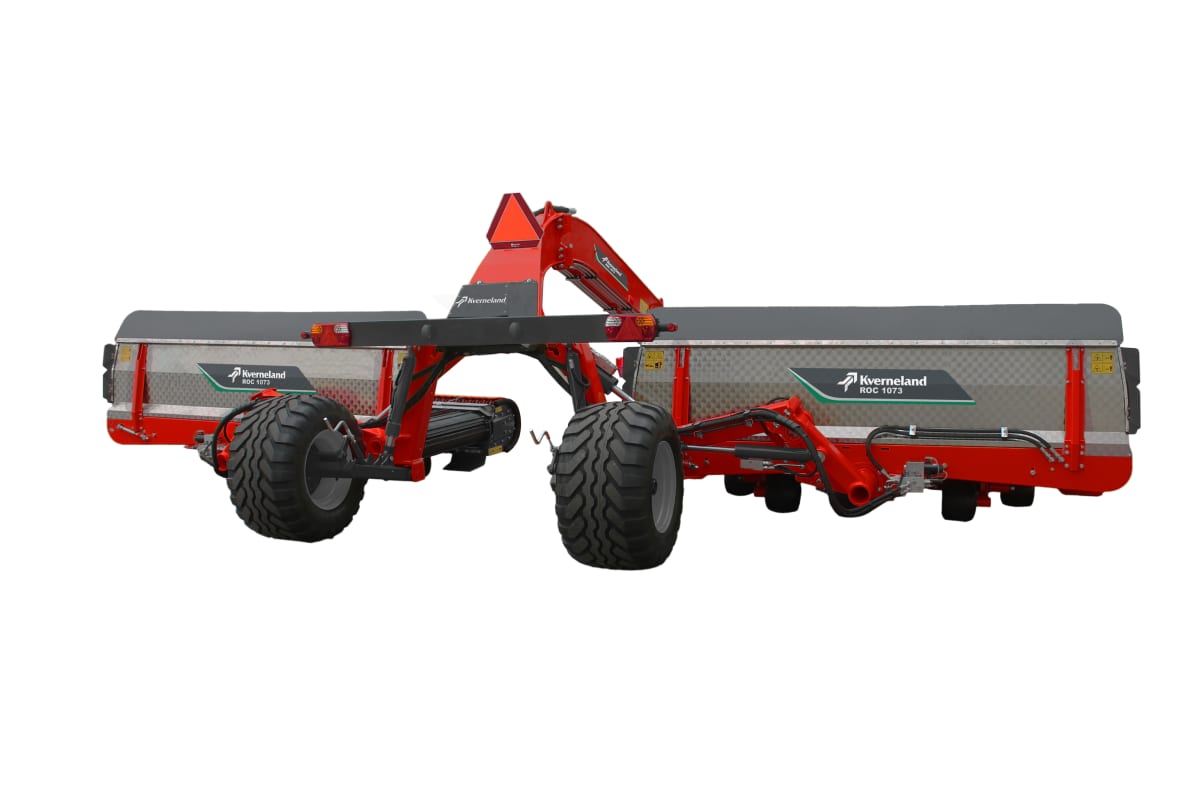

The Kverneland Roc 1073 machine is designed with two pick-up units that can be hydraulically shifted to allow the operator to use it for side or centre delivery. The side delivery has a minimum working width of 7m, while the centre swath can expand to a maximum of 7.30m.The remarkable features include excellent suspension for lifting and transporting crops without soil contamination. Its six-bar pick-up and roller work well for various silage cuts, and the reinforced belt has saw-blade-shaped crossbars for all crop conditions.The Kverneland Roc 1073 can be folded to 2.5m width for easy road transport and has road suspension for comfortable and fast transportation.
Highlights
• Rear-mounted 2 belt merger with variable working width from 5.95m to 7.30m.
• Designed for universal use as a side or central swath delivery.
• Unique pick-up system with 6 bars to ensure clean merging.
• Unique transport suspension carrier with centrally suspended turning point for pick-up units and tandem wheels.
• Electric height adjustment system
• High steering and manoeuvrability
• Foldable 2.5m width for road transport.
• Easy maintenance, quality, and replacement of components.
• An intuitive control unit operates all important functions.
Technical specifications
Technical specifications
Download brochure| Kverneland Roc 1073 | ||
|---|---|---|
| Working width (m) | 7-7.3 | |
| Pick up width (m) | 2 x 2.95 | |
| Transport width (m) | 2.5 | |
| Belts n. | 2 | |
| Power requirement (hp) | 70 | |
| Weight (kg) | 3180 | |
