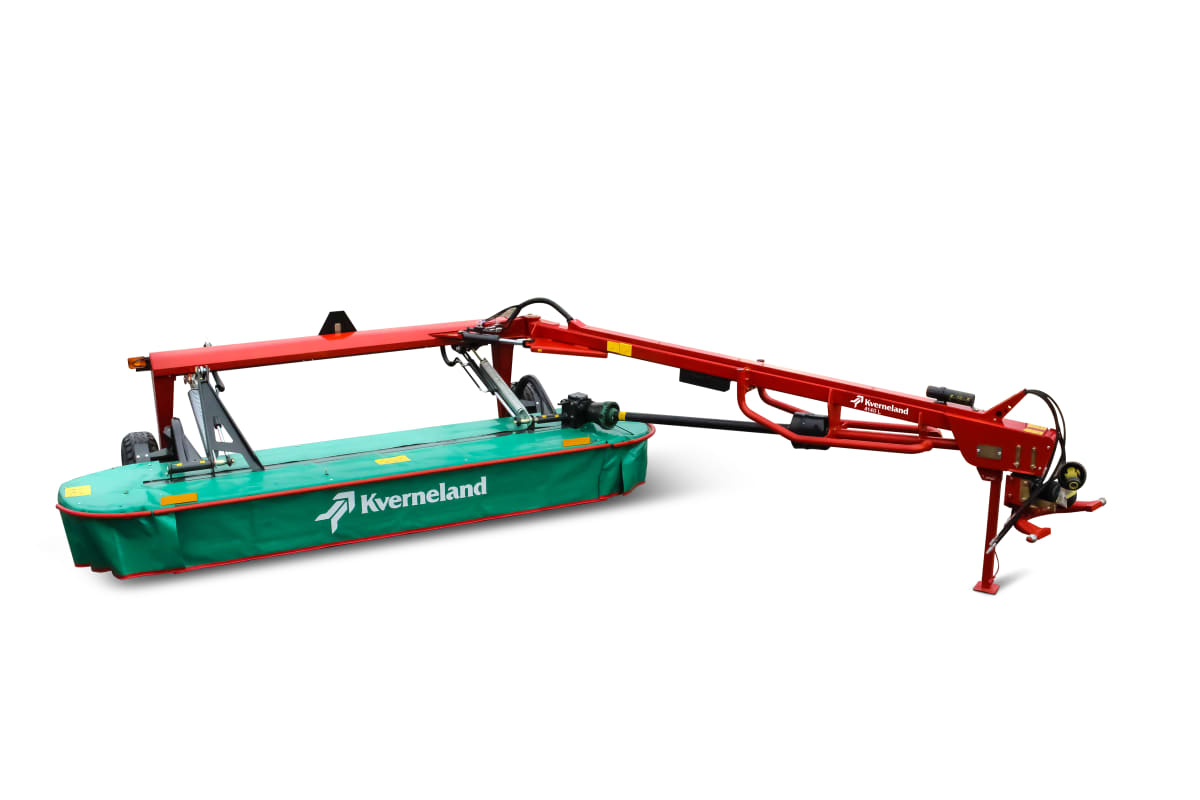

Kverneland 4100
Capacity for smaller tractors
Trailed plain disc mowers
Description

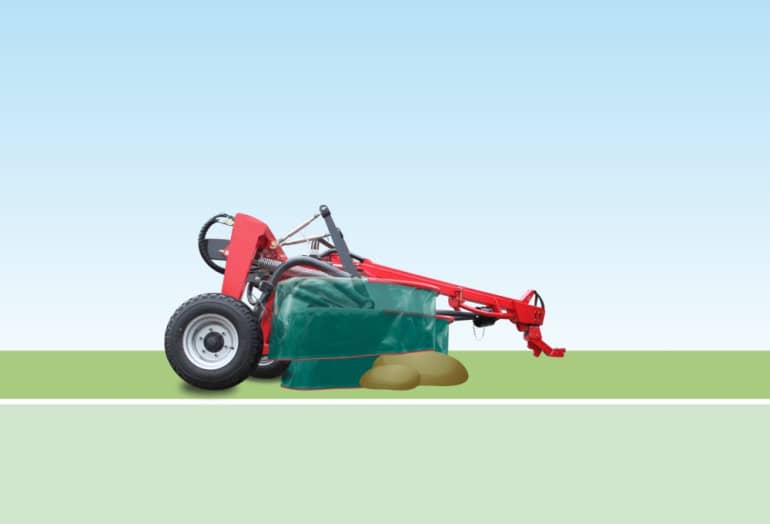

Kverneland 4100 L series, with 3.2 - 4.0m working width, is easy to operate and has a low power requirement, which reduces fuel consumption by allowing the mower to be used with smaller tractors. Due to the independent active suspension, the 4100 L series has a remarkable ability to adapt to ground contours. This technology improves grass flow and is gentler on the crop. It also helps protects the cutterbar from any unforeseen obstacles. Kverneland 4100 L series has a sideward adaption range of 17° in total. This generates many benefits while working on hillsides or controlling the unit on headlands.
Features
- Exceptional ability to adapt to the ground conditions
- Ensures an even pressure across the entire cutterbar in uneven conditions
- The range is 350mm (1’2”) upwards and 235mm (9”) downwards
- Sideward adaption which allows a movement up and down of 8.5° to each side – in total 17°
- Generates many benefits when working on hillsides or along ditches, and also makes it easier to control the unit on headlands
- The gearbox is fixed to the mainframe in order to ensure less movement during operation
- Provides unlimited rotational movement between the machine and the tractor
- Makes it easier to perform sharp turns
- Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
- Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
- The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
- The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
- The fully welded cutterbar gives a very stiff and strong design for high durability.
- With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.
- Exceptional ability to adapt to the ground conditions
- Ensures an even pressure across the entire cutterbar in uneven conditions
- The range is 350mm (1’2”) upwards and 235mm (9”) downwards
- Sideward adaption which allows a movement up and down of 8.5° to each side – in total 17°
- Generates many benefits when working on hillsides or along ditches, and also makes it easier to control the unit on headlands
- The gearbox is fixed to the mainframe in order to ensure less movement during operation
- Provides unlimited rotational movement between the machine and the tractor
- Makes it easier to perform sharp turns
- Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
- Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
- The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
- The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
- The fully welded cutterbar gives a very stiff and strong design for high durability.
- With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model | 4132 L | 4140 L | |
|---|---|---|---|
| Working width (m/ft) | 3.18(10’5”) | 3.92(12’10") | |
| Transport width (m) | 3.0 | 3.8 | |
| PTO (rpm) | 540/1000 | 540/1000 | |
| Min. power req. PTO output (kW/hp) | 48 / 65 | 63 / 85 | |
| Number of discs and knives | 8/16 | 10/20 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
Weight |
Power Req., Min |
|
4132 L |
3.16m |
1220kg |
48/65 kW/hp |
4140 L |
3.92m |
1340kg |
63/85 kW/hp |
