NG-S 101 F35
Kverneland power harrows with strength and reliability – power harrows you can rely on!

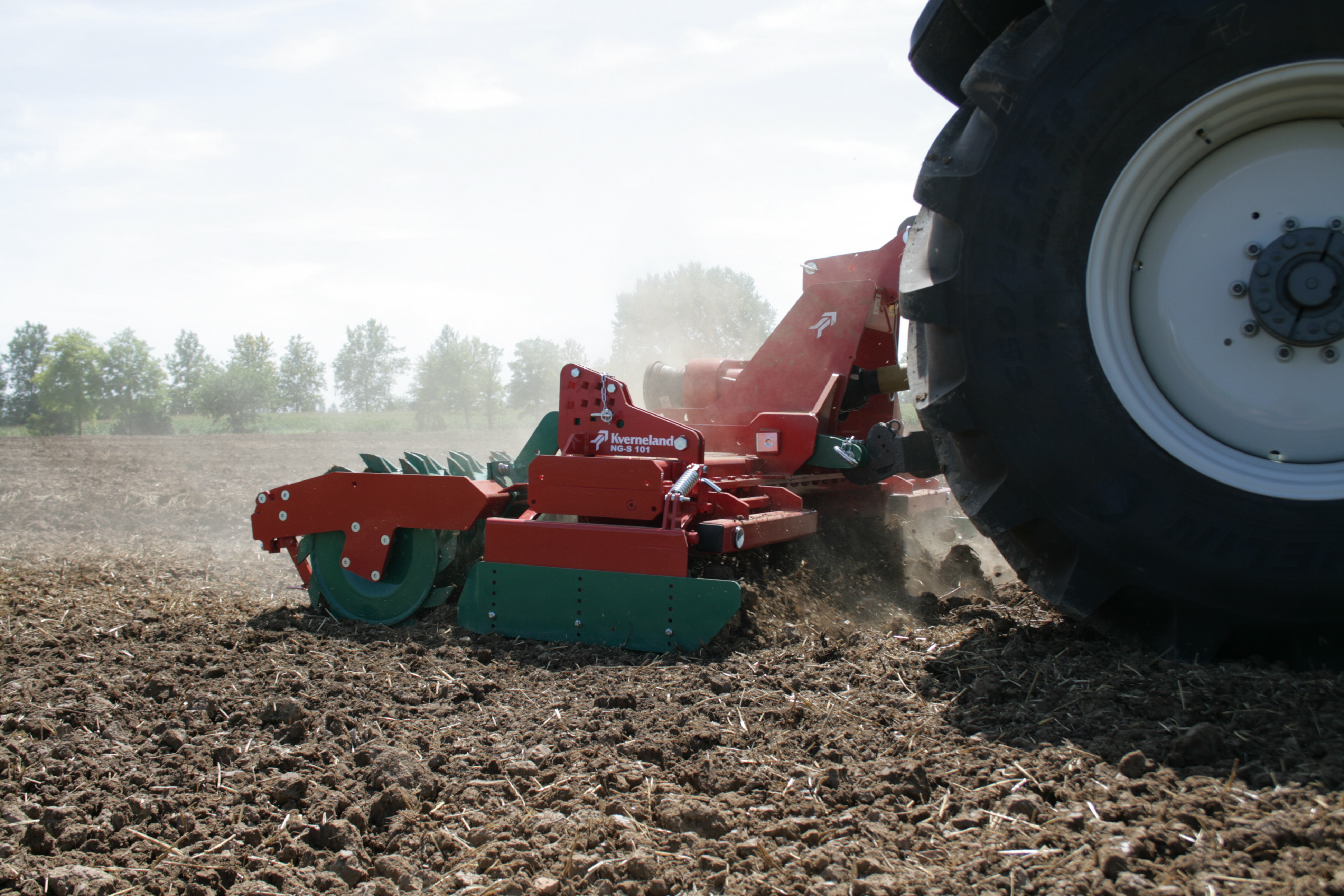

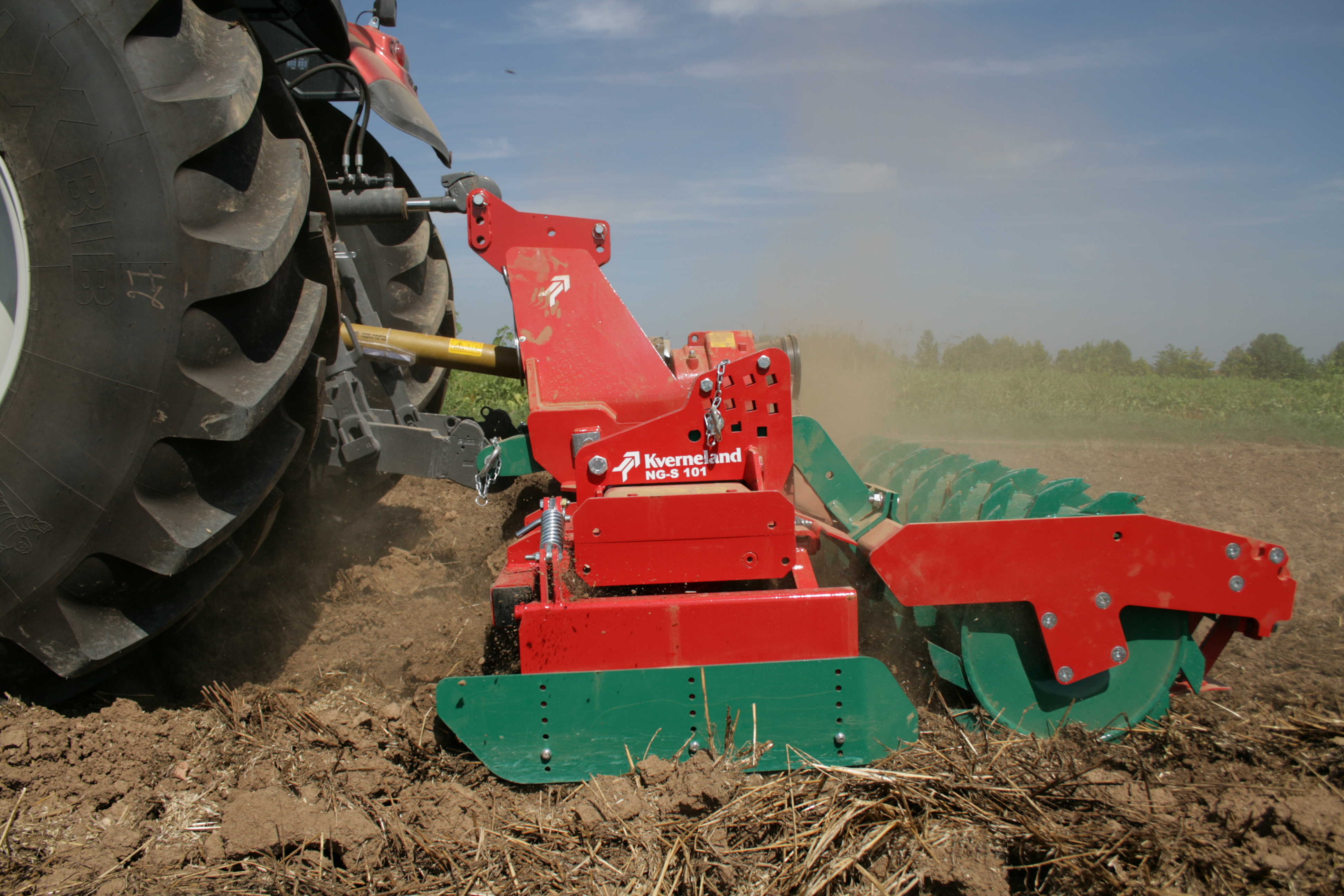

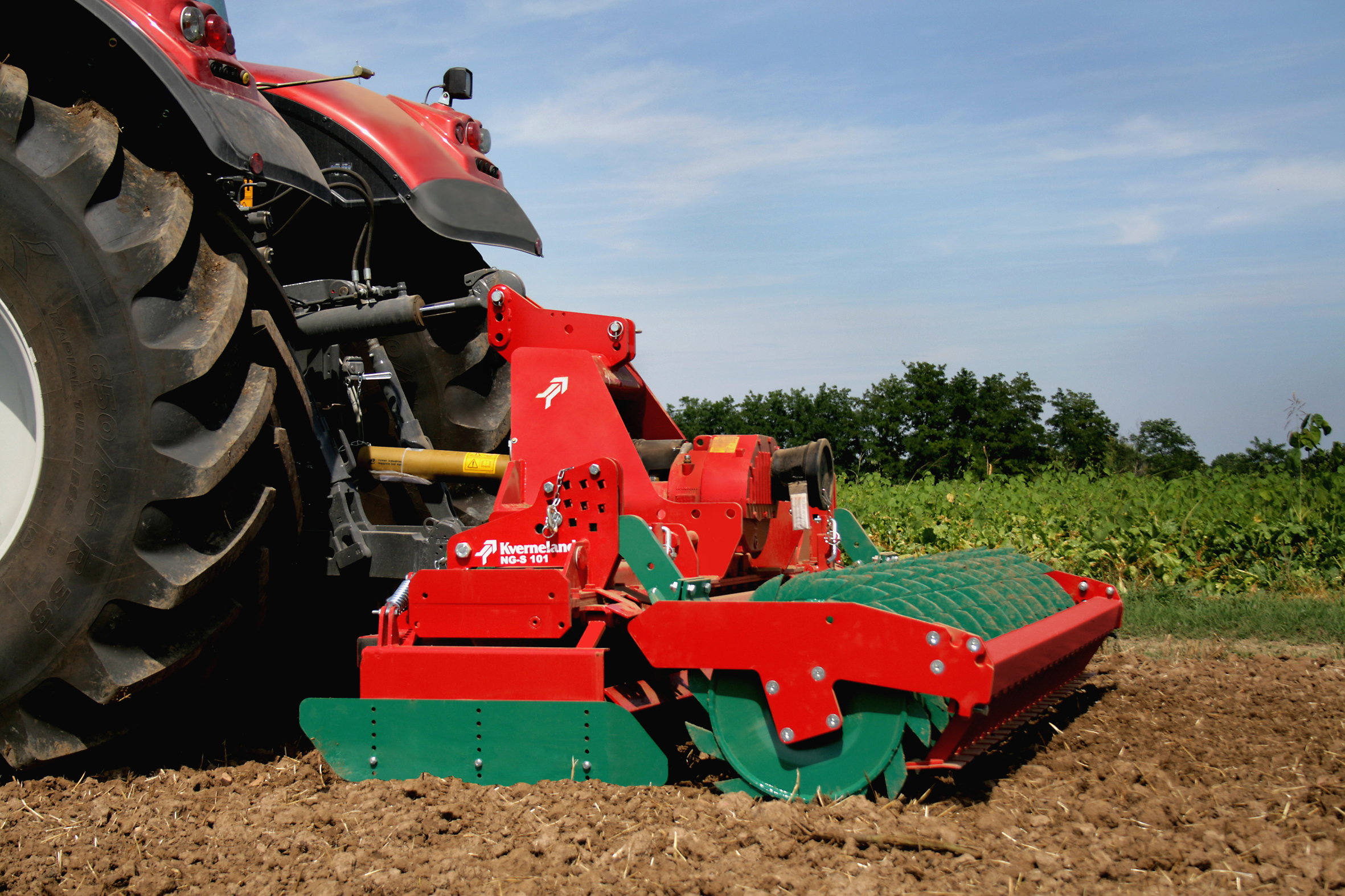

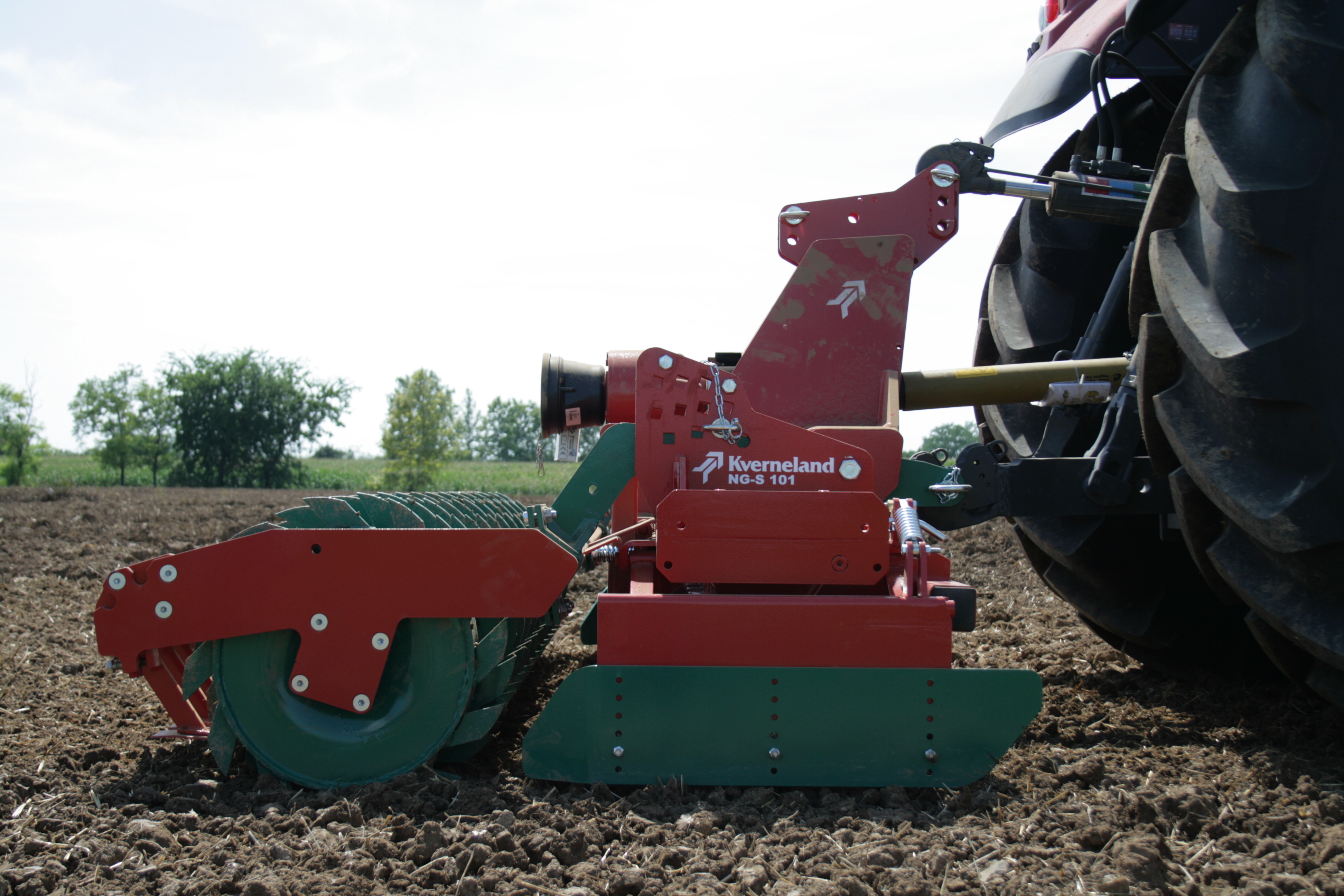

Kverneland foldable power harrow NG-S 101 F35 - For tractors up to 350HP
Description
The Kverneland foldable power harrow NG-S 101 F35 with 4.50 to 6.00m working width offer high performance, maximum durability and narrow transport abilities even in combination with seed drills from Kverneland.
A heavy-duty headstock and a robust transmission system ensure effective and safe operation. The advanced parallelogram hydraulic depth control system guarantees a perfect seedbed.
Highlights
- High output with high class technology and light weight
- Robust, self-supporting trough design providing the necessary needed strength
- Two large conical bearings with a wide distance providing rigidity and a long lifetime.
- Robust and reliable headstock for easy connection to all tractors and the attachment of heavy seed drill combinations.
- The NG-S 101 F35 is equipped with Quick-Fit tines to reduce downtime
Features
All models can be fitted with Standard and Active tines as well as with the proven Quick-Fit system to meet customer demand for efficiency.
Active tines
The active tines ensure optimum penetration in hard or not cultivated soil. The tine, due to its shape, pulls itself into the ground. This gives a constant working depth and also prevents the machine from lifting out of the ground in hard dry soil conditions. In addition, it creates additional re-compaction at the packer roller. The active tine lifts the material and pushes it in front of the power harrow. This gives an optimum levelling effect even in tractor tracks. In mulch conditions the active tines can work directly into stubble and hard soil. The special shape of the tines keeps residues on the surface and this gives a big advantage against erosion.
Helical tine positioning
The tines are arranged in varying angle positions in order to prevent damage caused by stones and ensure even levelling. 4 rotors per meter and the helical tine positioning reduce the peak loads on the driveline which results in smoother running and less fuel consumption. All gears are hardened in the trough for a long lifetime.
The quick-fit tines for easy replacement and carbide tines for a longer lifetime and minimum wearing are available as an option.
- Kverneland Quick-fit tines are simply fixed to the tine holder by a pin and a clip. All tines can be quickly replaced without any tools
- Down time can be minimised by optional carbide layered Quick-Fit tines. These tines ensure a long lifetime and minimum wearing even in tough and abrasive soils.
Re-consolidation for a stable soil structure
Rollers ensure re-compaction of the soil as final step of the optimum seedbed preparation. By reducing soil porosity and limiting evaporation, all plants will have the same access to nutrients, moisture and light. This will give the crop a good start for a perfect growth and high yields.
The right rollers for all types of soil and conditions:
Actipack ø560mm – 205 kg/m
- For medium to heavy soils, also in wet, stony and sticky conditions due to the independent skids and knives
- The cutting discs break the larger clods whilst the adjustable knives cut the remaining clods resulting in optimal clod breakdown and fine seedbed preparation
Cracker Packer ø550mm – 200kg/m
- For medium to heavy soils
- Real stripe-wise reconsolidation (12.5cm) in front of seed coulters – only 50% of the soil surface is rolled
- Good absorption of water
- Sufficient soil left loose for covering of seeds
- Good crumbling effect especially on heavy soils
- Smooth rings and passive-angled knives – no blocking when used in mulch conditions
Actiline Roller ø550mm – 185 kg/m
- For light to medium and heavy soils
- Trapezoidal roller with relatively narrow crest width of 40mm
- Stripe-wise consolidation and V shape furrow in front of the CX-II seed coulter bar
- Supporting water holding capacity and oxygen exchange
- Good carrying capacity with full self-cleaning effect
- Crests support the constant drive of the roller and avoid slip in light or tough and wet conditions
- Two different ring distances of 12.5cm and 15cm
- Carbide-coated scrapers on request
Tooth Packer roller ø575mm – 160kg/m
- Medium to heavy soils
- Good carrying capacity
- Good self-cleaning effect
- Central adjustable scraper bar with independently adjustable scrapers
- Carbide coated scrapers on request
- Most versatile roller – especially as part of heavy power harrow/seed drill combination
Cage roller ø550mm – 90kg/m
- Light to medium soil and dry working conditions e.g. seed bed preparation for potato planting
- 10 bars for a good loading capacity and option in wet conditions
Flexibility is key!
The coulterbar can be easily coupled and uncoupled with a coupling hook similar to the front loader coupling. Track markers are attached to the power harrow. Therefore, the power harrow is ready for solo operation within short time. The coulterbar is attached with the Euro-Connection directly to the roller frame and can quickly and easily be hitched thanks to the readily accessible hydraulic and electronic interface.
The e-drill is exclusively designed to be combined with Kverneland power harrows.
Technical specifications
Technical specifications
Download brochure| Model | F35 | F35 | F35 | |
|---|---|---|---|---|
| Maschine type | fold | fold | fold | |
| Working width (m) | 4.5 | 5.0 | 6.0 | |
| Transport width (m) | 2.5 | 2.5 | 2.5 | |
| Trough dimension (mm) | 150 x 400 | 150 x 400 | 150 x 400 | |
| PTO input speed (rpm) | 1,000 | 1,000 | 1,000 | |
| Overload protection on PTO shaft (Nm) | 2,500 | 2,500 | 2,500 | |
| Number of rotors | 18 | 20 | 24 | |
| Standard rotor speed 1000rpm (rpm) | 246, 326 and 387 (3-speed) | 246, 326 and 387 (3-speed) | 246, 326 and 387 (3-speed) | |
| Optional rotor speed 1000rpm (rpm) | 326 and 387 (2-speed) | 326 and 387 (2-speed) | 326 and 387 (2-speed) | |
| Tapered bearing distance (mm) | 110.5 | 110.5 | 110.5 | |
| Rotor clearance (mm) | 147 | 147 | 147 | |
| Number of tines | 36 | 40 | 48 | |
| Tine dimension (mm) | 18 x 330 | 18 x 330 | 18 x 330 | |
| Quick-Fit tines | Standard | Standard | Standard | |
| Active tines | Option | Option | Option | |
| 3-point Linkage: Top | CAT III | CAT III | CAT III | |
| 3-point Linkage: Low | CAT 3 | CAT 3 | CAT 3 | |
| Depth adjustment | hydraulic | hydraulic | hydraulic | |
| Rear levelling bar | Option | Option | Option | |
| Track eradicator | Option | Option | Option | |
| Roller offering | Cage roller (ø 550mm), Tooth Packer roller (ø 575mm), Actiline roller (ø 550mm), Cracker Packer roller (ø 550mm), Actipack roller (ø 560mm) | Cage roller (ø 550mm), Tooth Packer roller (ø 575mm), Actiline roller (ø 550mm), Cracker Packer roller (ø 550mm), Actipack roller (ø 560mm) | Cage roller (ø 550mm), Tooth Packer roller (ø 575mm), Actiline roller (ø 550mm), Cracker Packer roller (ø 550mm), Actipack roller (ø 560mm) | |
| Ready to carry or integrate seeding eq. | Option | Option | Option | |
| Lighting set | Option | Option | Option | |
| Total weight (kg)* | 3,200 | 3,500 | 3,900 | |
| Minimum power requirement (kW/HP) | 103/140 | 103/140 | 103/140 | |
| Maximum power requirement (kW/HP) | 257/350 (optional with 400HP gear) | 257/350 (optional with 400HP gear) | 257/350 (optional with 400HP gear) |
* Approx. weight with levelling bar, tooth packer roller ⌀ 575mm and PTO shaft approx.
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
No. of rotors |
Weight with packer roller (kg) |
NG-S 301 |
3.0 |
12 |
1940 |
NG-S 351 |
3.5 |
14 |
2164 |
NG-S 401 |
4.0 |
16 |
2417 |
NG-S 451 |
4.5 |
18 |
2670 |
* Approx. weight with levelling bar, tooth packer roller ⌀ 575mm and PTO shaft approx.
