Kverneland Roc 1073 S
Universal multi-crop mergers
Highlights
A belt with saw-shaped, fibreglass-reinforced crossbars Wide suspended tandem wheels under the belt provide protection for grass fields The unique belt design results in even and fluffy swaths Crop placement and swath volume can be highly versatile Thanks to the high volume of oil, there is no need for a cooling fanDescription

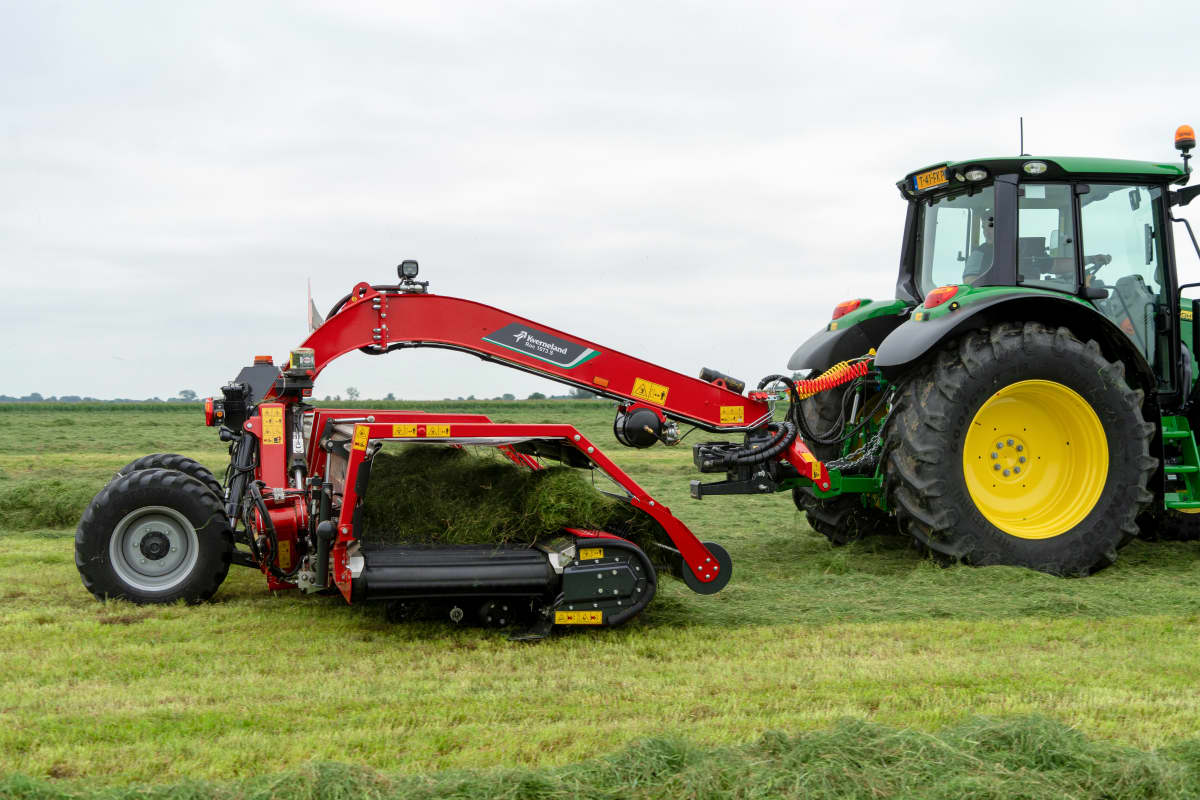

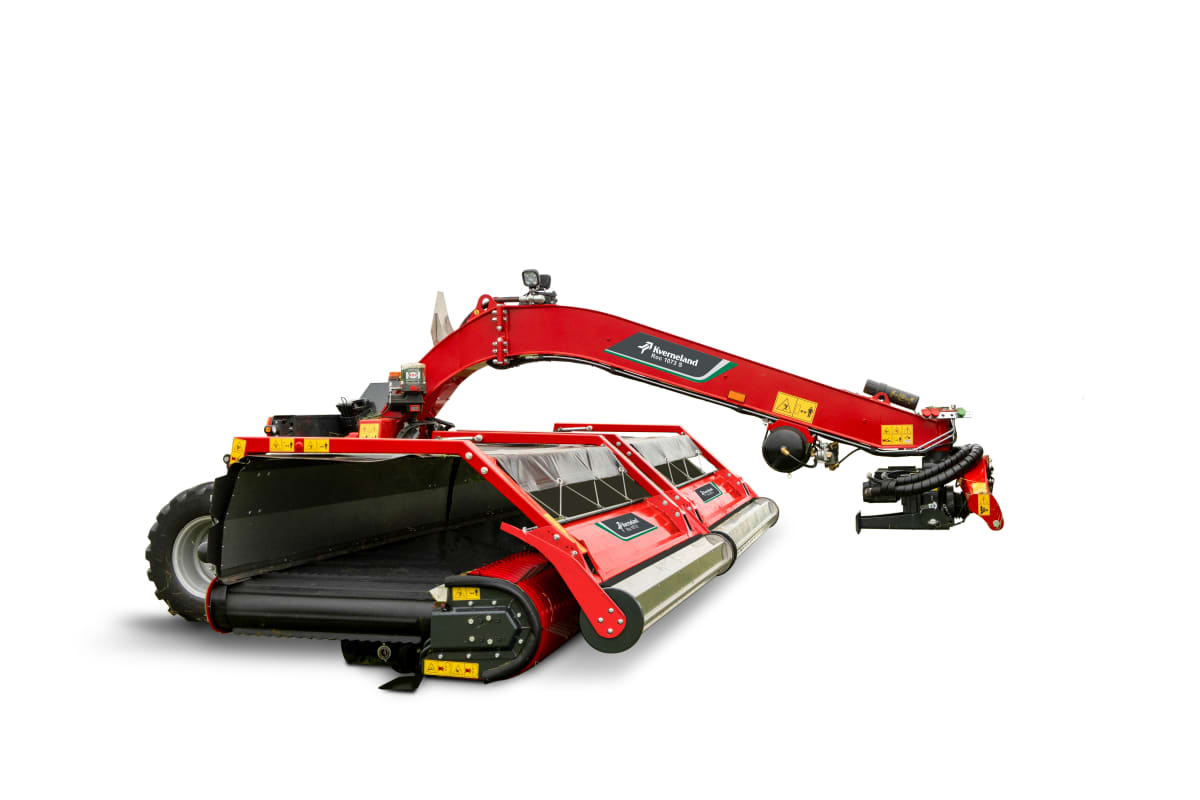

Discover the next level of raking with the Kverneland Roc 1073 S multi-crop merger. Increase crop quality and improve animal health with our mergers. The machine is designed with low maintenance requirements and easy access for repairs, which makes it cost-effective and productive to operate. The Kverneland Roc 1073 S is a two-pickup merger equipped with a hydraulic side shift of the pick-up units, allowing the operator to use the machine for side or centre delivery. Side delivery with the narrowest working width of 7m, opens to a maximum of 7.30m as centre swath.

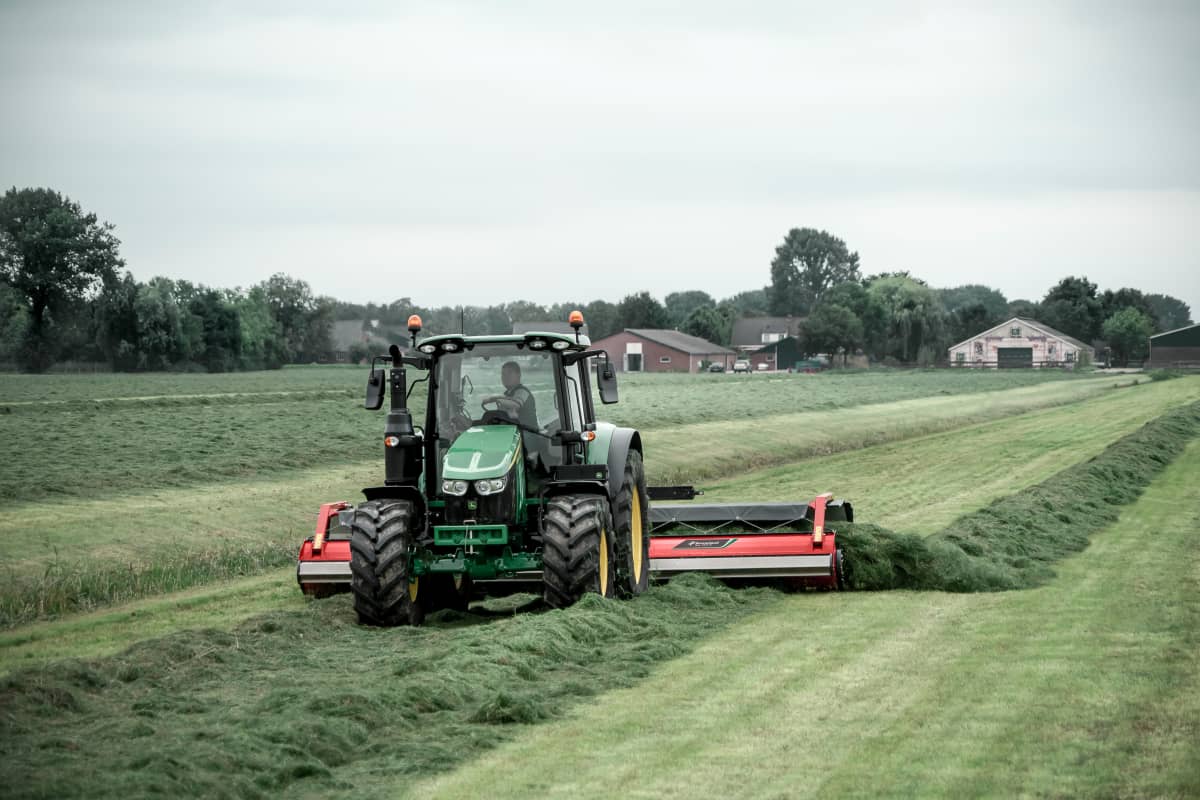

An excellent suspension system provides precise lifting and transportation of crops while avoiding soil contamination, ensuring high capacity in all conditions. With its standard six-bar pick-up and roller, this machine is perfectly equipped for late short, wet, sticky silage cuts. The reinforced belt features saw blade-shaped cross bars, performing well in all crop conditions. In high-volume dry crops, the fully suspended roller can be lifted hydraulically from the cab in any position. The Kverneland Roc 1073 S merger has a hydraulic dual scale that can be used for side or centre delivery, and is built on two elements. The working width of the side delivery ranges from 7m to a maximum of 7.30m when creating a centre swath or turning two swaths. When pickups connect, the belt merger moves the crop to one or both sides. Expanded pick-ups create a central or double swath with belts moving left, right or both sides. As the crop moves along the conveyor belt, there is no roping, allowing multiple pick-ups and transportation to create large swaths for high-horsepower choppers.

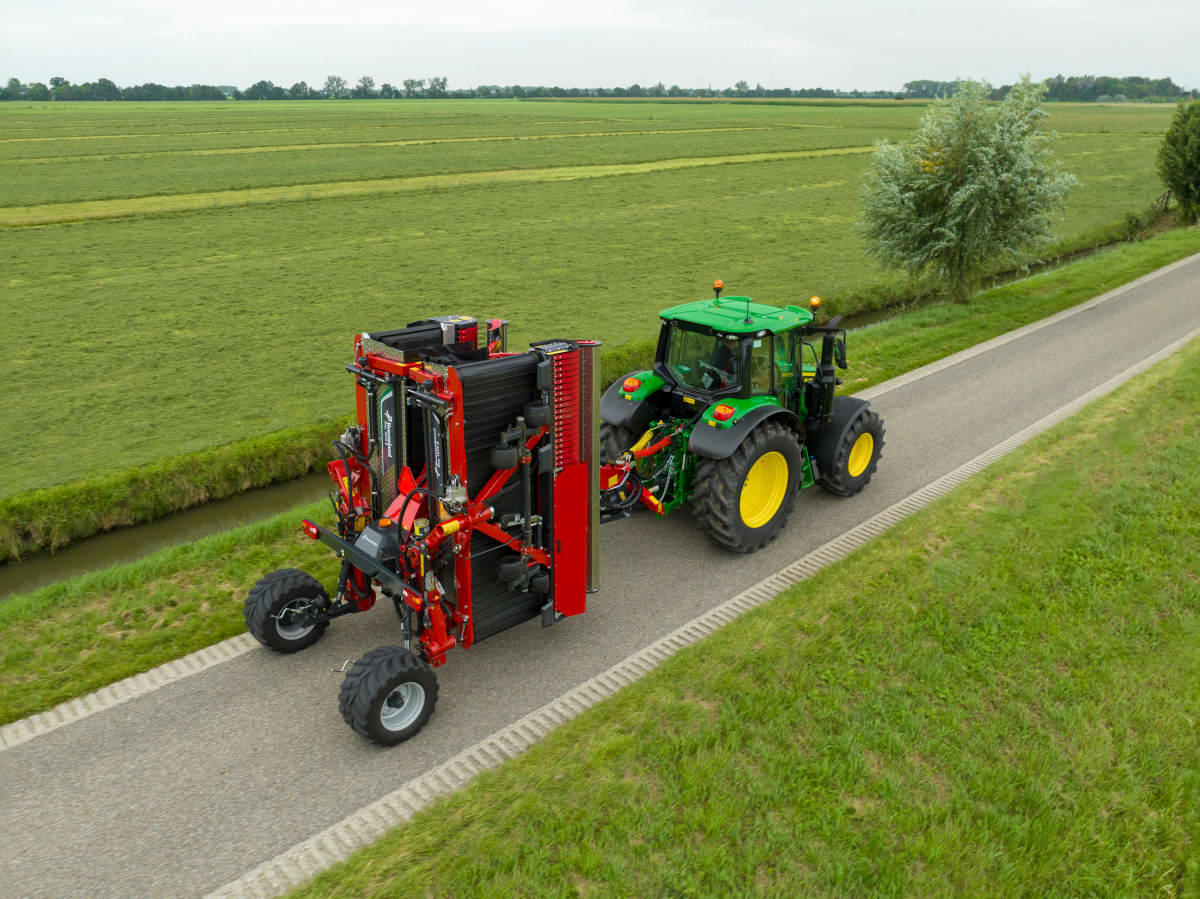

The Kverneland Roc 1073 S can be folded to 2.5m width for easy road transport and has road suspension for comfortable and fast transportation.
Technical specifications
Technical specifications
Download brochure
|
Working width center swath (m) |
Pick-up width (m) |
Belts n |
Transport width (m) |
Power requirement (hp) |
Weight (kg) |
Kverneland Roc 1073 S |
7-7.3 |
2x2.95 |
2 |
2.5 |
70 |
3440 |
