DG II
Effective sowing with high capacity seed drill for high and precise seed output.
High capacity trailed seed drill meets the request for utmost efficiency and output
Description

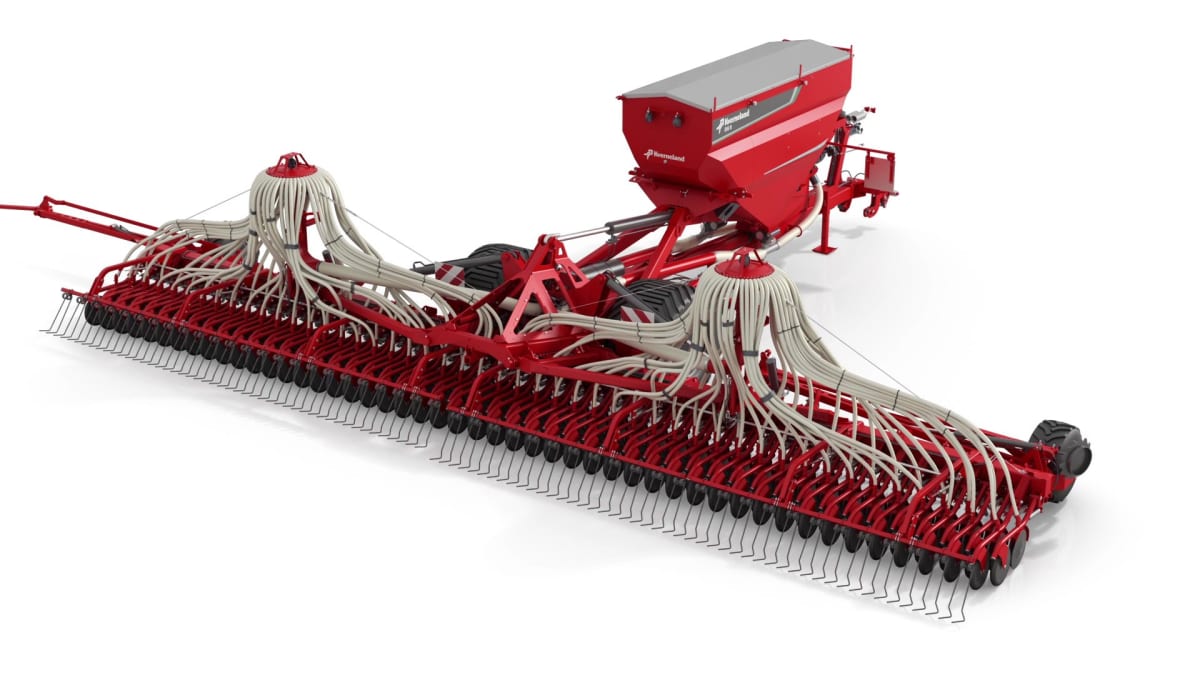

The Kverneland DG II trailed seed drill combines high performance, safe, rapid transport, ease of adjustment, and short preparation times in one machine. With a working width of 9 or 12 meters and a hopper capacity of 6,000 litres, the DG II is a perfect high capacity seed drill for up to 140 ha in one day!
The narrow profile of the seed coulters with their slightly off-set steel discs allows easy penetration into the soil for most precise seed placement. With on the go adjustment of seeding depth and coulter pressure by the Active-on system (up to 80kg) and the automatic headland management, the high capacity DG II offers operator comfort and safe application. Large sized wheels (800/45 x 26.5) ensure safe handling on the road and low pressure on the soil.
Highlights
- High performance and large capacity
- Superior seed depth control also at high working speeds by Active-on system
- Strong frame design for stability and reliability
- State of the art seeding technology with ELDOS and CD coulter
- Good visibility and manoeuvrability
- Compact on the road in transport position
- Easy accessible for setting and maintenance
Technical specifications
Technical specifications
Download brochure| Model | DG II 9000 | DG II 12000 | |
|---|---|---|---|
| Working width (m) | 9.00 | 12.00 | |
| Transport width (m) | 3.00 | 3.00 | |
| Transport length (m) | 8.55 | 8.55 | |
| No. of metering devices ELDOS® | 2 | 2 | |
| Seed rate with 15km/h (kg/ha) | 1 - 320 | 1 - 320 | |
| Hopper capacity (l) | 6,000 | 6,000 | |
| Filling height (m) | 3.10 | 3.10 | |
| Required oil volume | > 110l/min | > 110l/min | |
| Single-acting hydraulic valve + zero-pressure return for fan drive | Standard | Standard | |
| 1 x double-acting hydraulic valve for machine control | Standard | Standard | |
| Power requirement 12 V > 70 A | Standard | Standard | |
| Elektro-hydraulische Einstellung der Ablagetiefe via ISOBUS Terminal | Standard | Standard | |
| No. of CD coulters | 72 | 96 | |
| Coulter pressure up to 80kg (Active-on system) | Standard | Standard | |
| Press wheels (Ø 380 x 50 mm) | Standard | Standard | |
| Scraper of press wheels | Option | Option | |
| Row spacing (12,5 cm) | Standard | Standard | |
| Electronic adjustment of the seed quantity with radar | Standard | Standard | |
| Filling level sensors in the seed hopper (no.) | Option (2) | Option (2) | |
| Hydraulic fan drive | Standard | Standard | |
| Fan speed sensor | Standard | Standard | |
| Metering device monitoring | Standard | Standard | |
| Electronic half-width shut-off | Standard | Standard | |
| Magnetic shut-off valves (max. no.) | Option (8) | Option (8) | |
| Calibration set | Standard | Standard | |
| LED working lights | Option | Option | |
| Maintenance platform, lightning for road transport and inside the hopper | Standard | Standard | |
| Lower link hitch CAT III (965mm) | Standard | Standard | |
| Lower link hitch CAT III N (825mm) | Option | Option | |
| Lower link hitchg CAT IV N (965mm) | Option | Option | |
| Hydr. clod board | Option | Option | |
| S-Following harrow 10mm | Standard | Standard | |
| Finger following harrow 12mm | Option | Option | |
| Hydraulic foldable trackmarker arms with notched discs | Option | Option | |
| Hydr. track eradicator (2 tines per tractor track) | Option | Option | |
| Track eradicator (2 tines per wheel of the wing segment) | Option | Option | |
| Track eradicator (3 tines per transport wheel DG II) | Option | Option | |
| Transport wheel (mm) | 800/45-26.5 | 800/45-26.5 | |
| Wheels of the wing segment (mm) | 31x15.5-15 | 31x15.5-15 | |
| Pneumatic brake | Option | Option | |
| Hydraulic brake | Option | Option | |
| Pre-emergence marker (centre marking) | Option | Option | |
| iM Tellus for non-ISOBUS-capable tractors | Option | Option | |
| iM Tellus for ISOBUS-capable tractors | Option | Option | |
| Headland management | Standard | Standard | |
| Max. road transport speed (km/h) | 40 | 40 | |
| Weight (kg) (Basic equipment) | 6,850 | 7,660 | |
| Min. power requirement (HP) | 180 | 230 |
