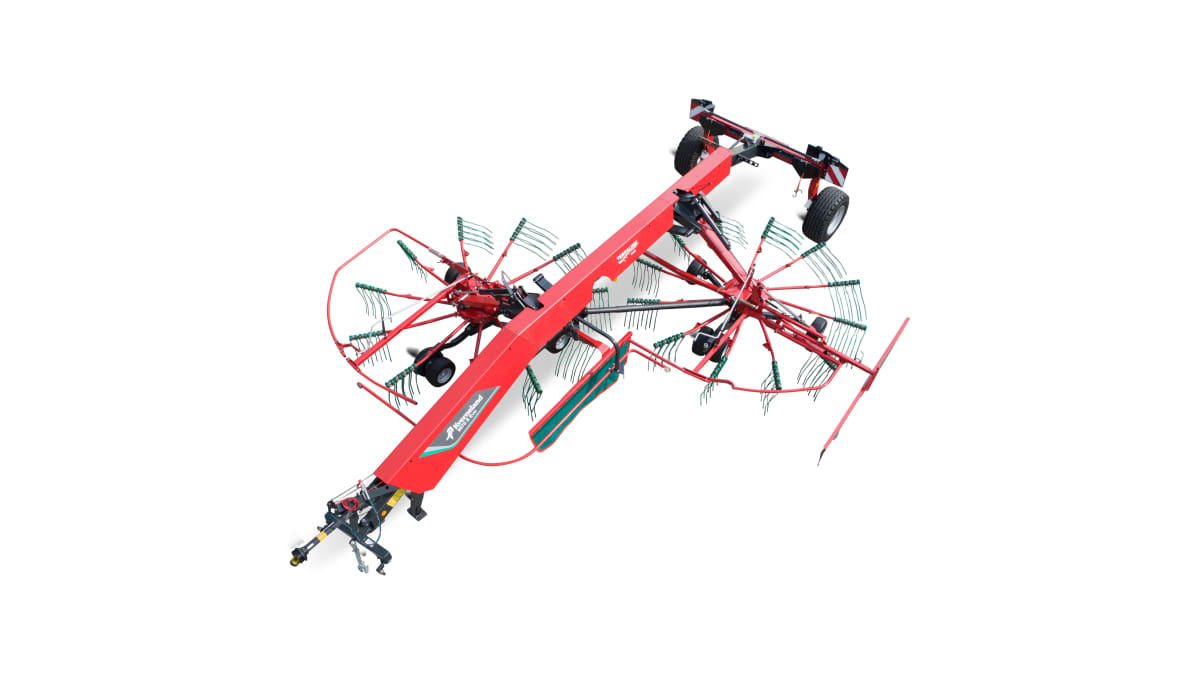

Kverneland 9670 S VARIO

• The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
• Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
• The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.

With the updated feature “Terralink PLUS”, the cardanic rotor attachment benefits from a further advanced ground adaptation supported by the “Touch-Down-Effect”.

This PLUS on advanced ground adaptation delivers more flexibility with 8° more movement possibility, which leads to more precision and with that consequently a Plus for the forage quality.

The Touch-Down-Effect, comparable to an airplane’s approach angle of its landing chassis, ensures a smooth and clean raking, but also avoids with lifting to a ground clearance of around 500 mm that swaths on headlands are being damaged.

• It is possble to collect either one large swath or two smaller swaths.
• The Kverneland 9671 S Vario & Kverneland 9471 S Evo models can place two large swaths into one, allowing a total of up  to 12.50m crop to be gathered into one swath.
• 9670S Vario can also place two large swaths into one, allowing a total of up to 13.0 m crop to be gathered into one swath.
• It is also possible to place two small night swaths for hay crops.

Automatic foldable swath board

• Gravity folding, no hydraulics required
• Swath board can stay in adjusted position (swath width)
• If the swath board is not used, the parking stand can be folded up
• The parking stand secures that the rotor keeps the parallel touch down
• Front swath board is a standard on Vario, can be taken of if not needed.

• 380 mm transport wheels
• Comfortable storing solution for Hydraulics and PTO
• New massive parking stand, saves positioning in all conditions
• Mud guards for transport wheels
• Optional Automatic transport locking
• Optional tandem axle (on rear and front rotor)
