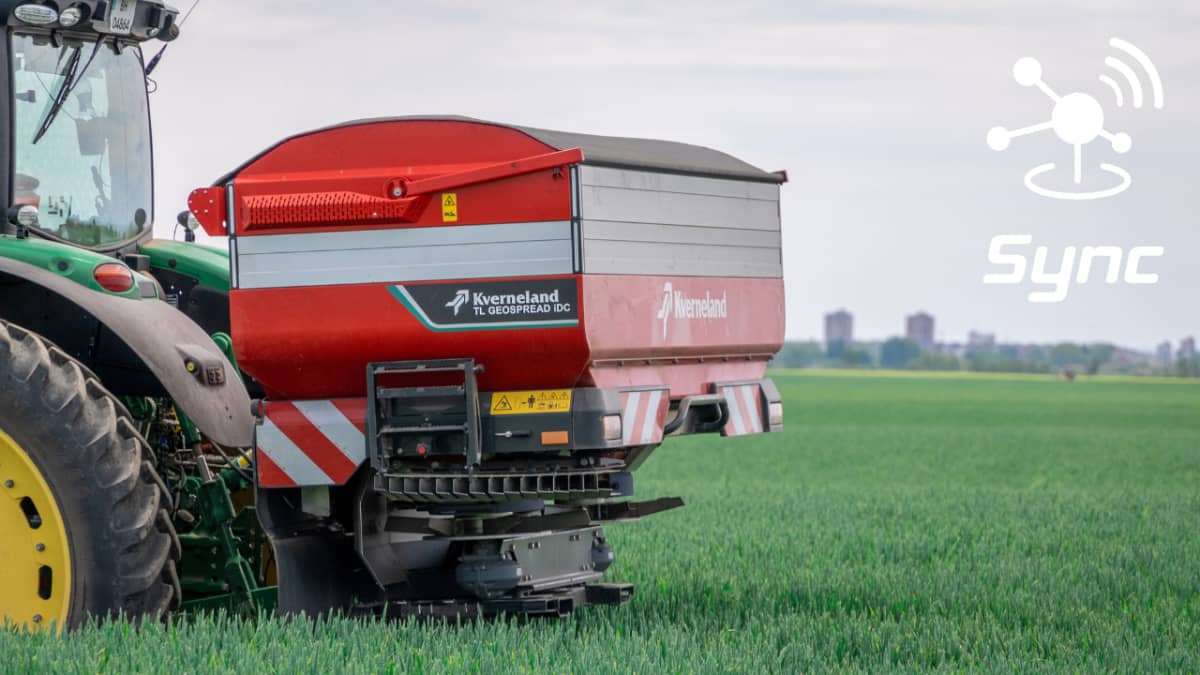

Kverneland Exacta TL GEOSPREAD iDC
To get a perfect spread pattern.
intelligent Disc Control with the TL GEOSPREAD iDC.
Description
The TL GEOSPREAD iDC uses automatic control of the advised disc speed independent from the tractor RPM. This results in a better spreading pattern and more equal distribution in the field. This means improved settings and accuracy for border spreading in all conditions. Due to the hydraulically driven discs there is no need to use a PTO shaft. The TL GEOSPREAD iDC spreader is ISOBUS compatible and AEF certified. The spreader can be operated in combination with the IsoMatch Tellus PRO, IsoMatch Tellus GO+ or any other ISOBUS compatible tractor terminal.
Highlights
- Automatic function on disc RPM.

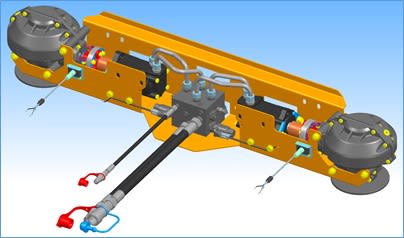

- Integrated hydraulic driveline.
- Independent disc speed left and right for border spreading.

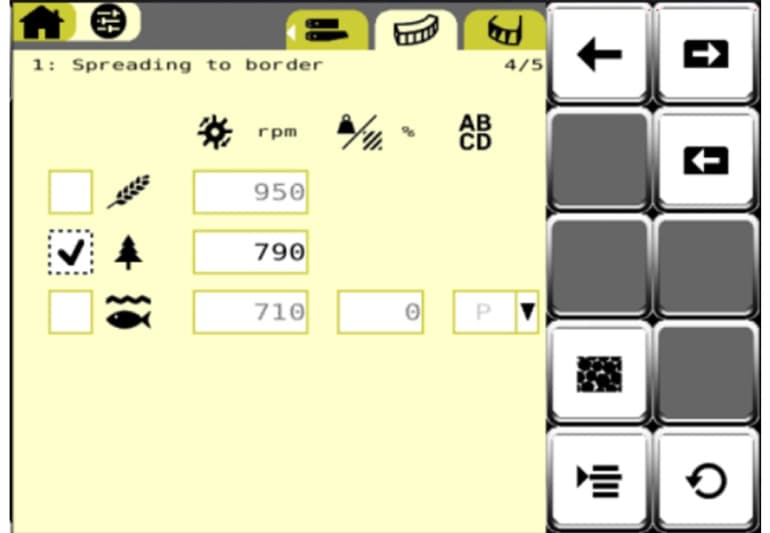

- All adjustments are easily done via the AutosetApp.
- Border spreading for all type of fertiliser and all working widths.
- ISOBUS compatible and AEF certified.
- Possible in combination with IsoMatch GEOCONTROL.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Exacta TL GEOSPREAD iDC | |||||
|---|---|---|---|---|---|
| Hopper capacity (l) | 1875 | 2550 | 3225 | 3900 | |
| Filling height (cm) | 119 | 138 | 157 | 176 | |
| Width (cm) | 290 | 290 | 290 | 290 | |
| Filling width (cm) | 284 | 284 | 284 | 284 | |
| Empty weight (kg) | 700 | 730 | 760 | 790 | |
| Spread width (m) | 12-54* | 12-54* | 12-54* | 12-54* | |
| Output (kg/min) | 10-320 | 10-320 | 10-320 | 10-320 | |
| Controls | ISOBUS | ISOBUS | ISOBUS | ISOBUS | |
| Hydraulic drive line | Standard | Standard | Standard | Standard | |
| LED lighting set | Standard | Standard | Standard | Standard | |
| Border spreading plate | Option | Option | Option | Option | |
| ExactLine border spreading system | Option | Option | Option | Option |
Unable to load the table
*Dependent on type of fertiliser and vanes.
