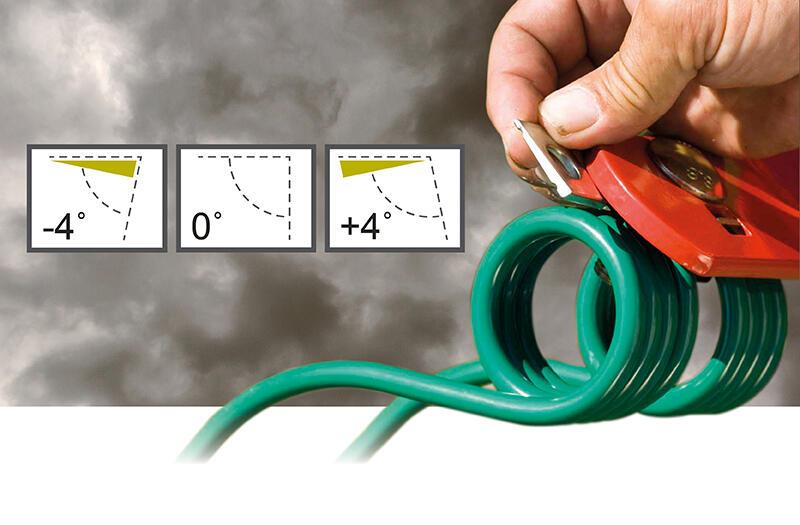

3-STEP TINE ANGLE ADJUSTMENT
By inserting a triangular washer between the tine and the tine arm – the Super-C tine can be locked in three alternative positions for optimum performance in different crop conditions.
SENSITIVES CROPS
Passive angle of -4°. Insert the washer with slope against the direction of rotation.
NORMAL CROP
Standard angle of 0 degrees. No washer required as per standard factory specification.
CONDITIONING FORAGE
Aggressive angle of +4°. Insert the washer with slope in direction of rotation.
TRIANGULAR WASHER: VF16644606.61

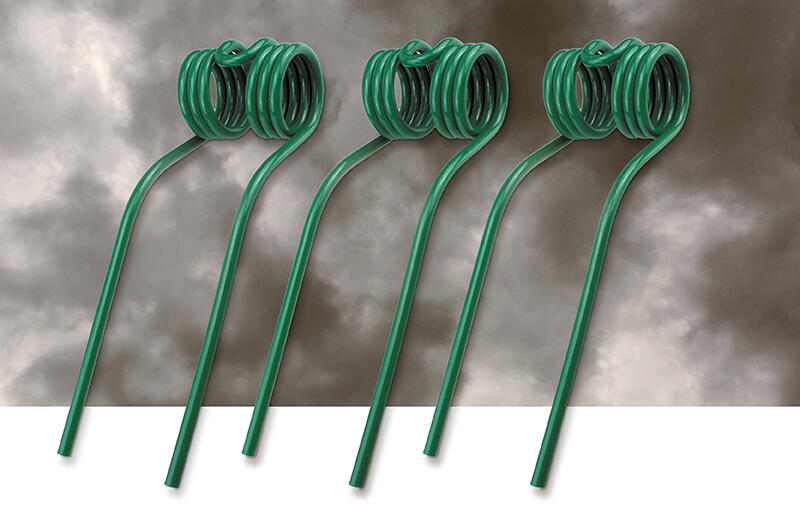

SUPER-C TINES
The Super-C Tine is made from 10mm Shot-blasted Coil spring steel and has two equal length legs to evenly spread the load. Being 20% greater in diameter than conventional designs – results in one of the most durable and flexible tines on the market.
CompactLine: VF16644530.86
ProLine: VF16607564.86
ProLine: VF16644761.86
ProLine: A131393586

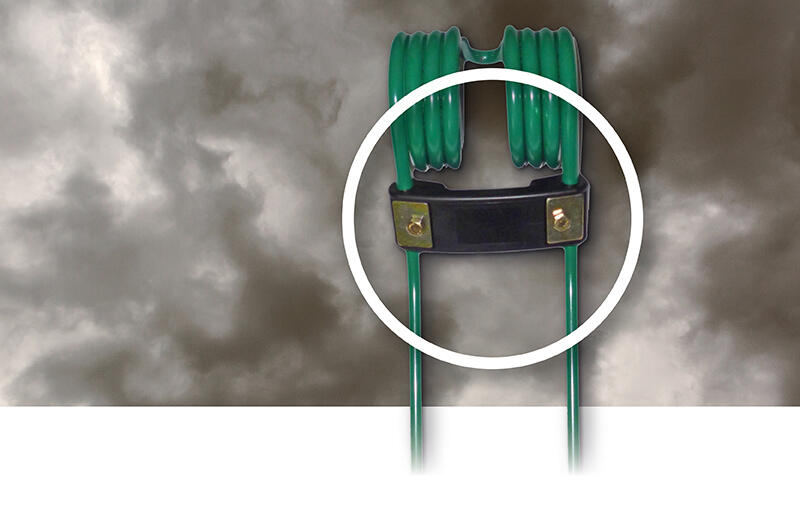

TINE SAFETY
Damage to both livestock and machinery can be avoided by fitting Tine Safety clips to all tines. Mounted below the coil securing both tine legs - the safety device holds both halves of the tine together to prevent it from being lost in the crop.
CompactLine: VF06580459
ProLine: VF06565406
ProLine: VF06565406
ProLine: VF06565406

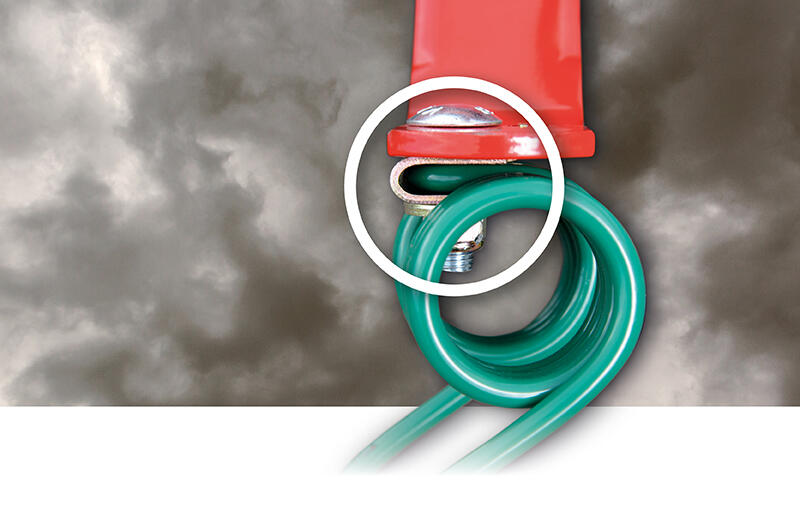

TINE FIXING
Using the appropriate Fixing Kits, securely tightened at all times, will ensure the tines give maximum performance and keeps losses and downtime to a minimum. (*Can be used with triangular washers – see above)
CompactLine: A131835630
ProLine: VF06565744
ProLine: A131835230
ProLine: A131835430
